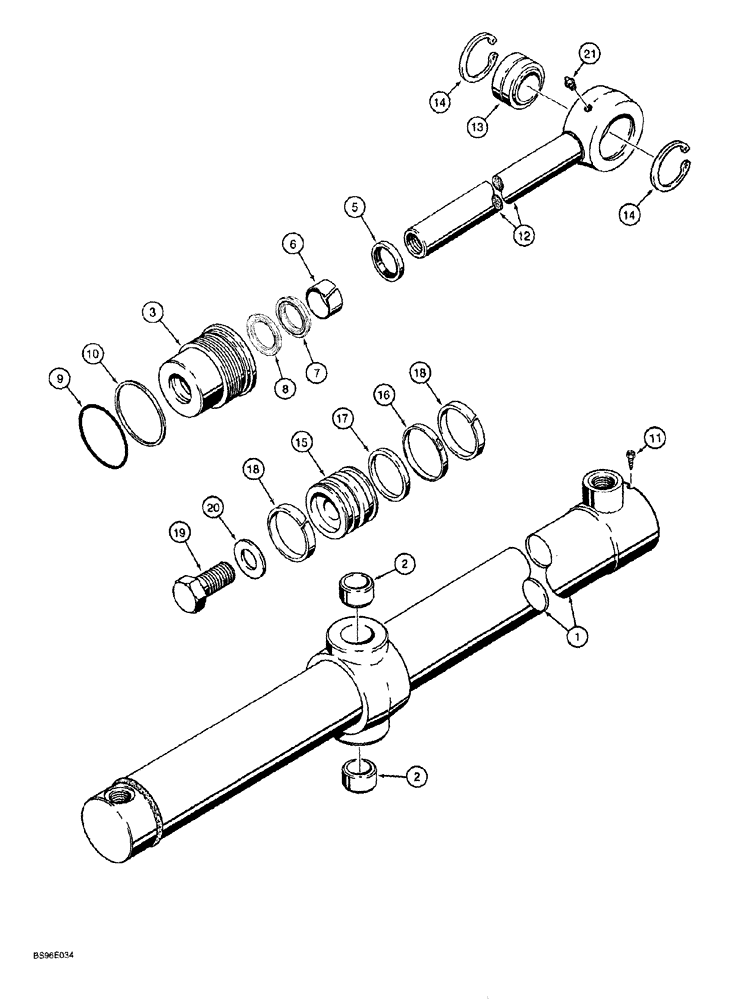

Запчасти Case 1150G (8-026) - LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

G109819

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 817.63mm Stroke

83 (3-1/4) ID x 818 mm (32-3/16 inch) stroke, lift, Includes: Ref. 1 - 21

2шт.

1

G109820

TUBE,3.24" ID x 3.75" OD x 39.65" L

TUBE cylinder, Includes: Ref. 2

1шт.

2

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

25 mm (1 inch) long

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSY., cylinder, Includes: Ref. 3 - 10

1шт.

3

1542972C1

CYLINDER END CAP

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER dust

1шт.

Part of seal kit 1543265C1

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

center

1шт.

Part of seal kit 1543265C1

1шт.

1542875C1

SEAL KIT,44.4mm Rod

NSS, Order 1543265C1, Incl Ref 7, 8

1шт.

Part of seal kit 1543265C1

1шт.

7

1542999C1

SEAL

rod, NSS, order 1543265C1 kit below

1шт.

8

1542998C1

SEALING RING

buffer, NSS, order 1543265C1 kit below

1шт.

9

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

Part of seal kit 1543265C1

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING backup

1шт.

Part of seal kit 1543265C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

G109822

PISTON ROD

44 mm (1-3/4 inch) diameter, Includes: Ref. 13, 14

1шт.

13

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING self-aligning

1шт.

14

100-21244

SNAP RING,2.44", Int, #244

2шт.

15

G100642

PISTON

cylinder

1шт.

16

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

piston

1шт.

Part of seal kit 1543265C1

1шт.

17

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

backup

1шт.

Part of seal kit 1543265C1

1шт.

18

S109445

RING,82.55mm OD, Ext

wear

2шт.

Part of seal kit 1543265C1

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

flat, special, hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

1543265C1

SEAL KIT

seal, Includes: Ref. 5, 6, 9, 10, 16 - 18, P/N 1542875C1 and an instruction sheet, plus an additional seal not used in this application

1шт.
