(8-024) - RIPPER HYDRAULIC CIRCUIT, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478

Запчасти Case 1150G (8-024) - RIPPER HYDRAULIC CIRCUIT, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

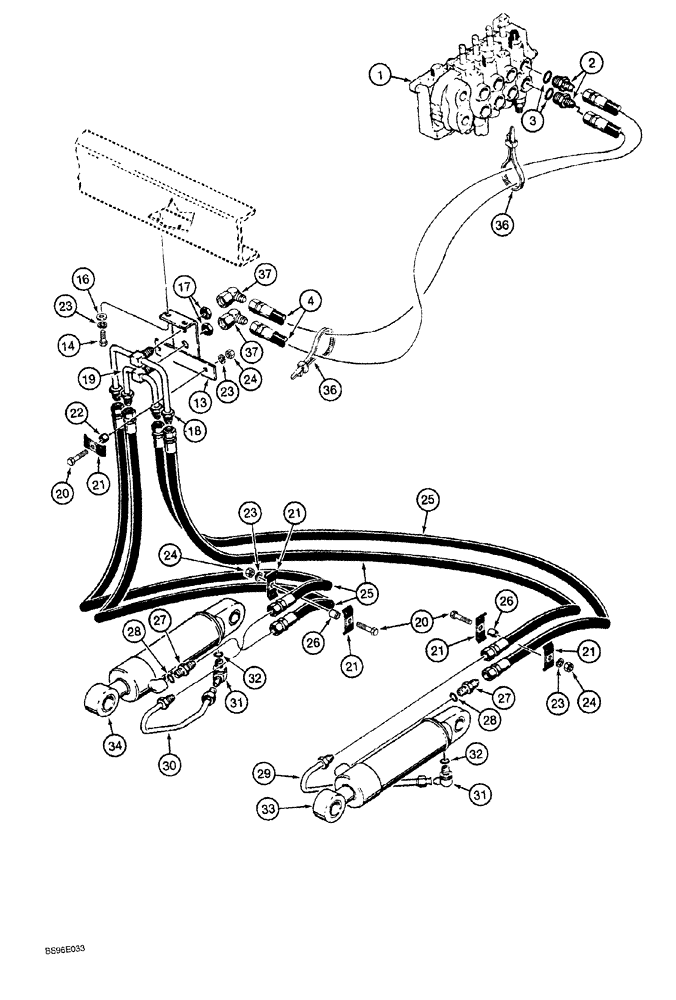

Схема запчастей Case 1150G - (8-024) - RIPPER HYDRAULIC CIRCUIT, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM
17
27
21
36
31
18
22
16
23
27
26
24
33
29
32
26
25
28
2
37
28
21
23
21
3
24
23
21
31
37
13
14
34
30
25
23
36
24
4
21
32
20
20
1
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSY., equipment control, see Figure 8-046

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 3/4-16 flare x 1-5/16-12 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

At control valve

2шт.

13

R35545

BRACKET

tube mounting

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

17

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

18

R35549

TUBE,0.625" OD x 6.2, 3.75" L

tee, upper, A port

1шт.

19

R46492

TUBE,0.625" OD x 4, 2.1" L

tee, lower, B port

1шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

21

D40236

CLAMP

to bracket, used with D146035

6шт.

22

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER split, tubes at bracket, used with D40236

2шт.

23

492-11038

LOCK WASHER,3/8"

6шт.

24

425-106

NUT,3/8"-16, Cl 5

4шт.

25

F93300

HOSE

737 mm (29 inch), Serial Range: long,-cylinder

4шт.

26

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm (7/8 inch) long

2шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

R29282

TUBE,0.625" OD

to closed end of cylinder, right-hand

1шт.

30

R29283

TUBE,0.625" OD

to closed end of cylinder, left-hand

1шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

G101272

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 (4) ID x 245 mm (10 inch) stroke, right-hand, ripper, see Figure 8-032

1шт.

34

G101273

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke

102 (4) ID x 245 mm (10 inch) stroke, left-hand, ripper, see Figure 8-032

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

37

218-5381

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.
