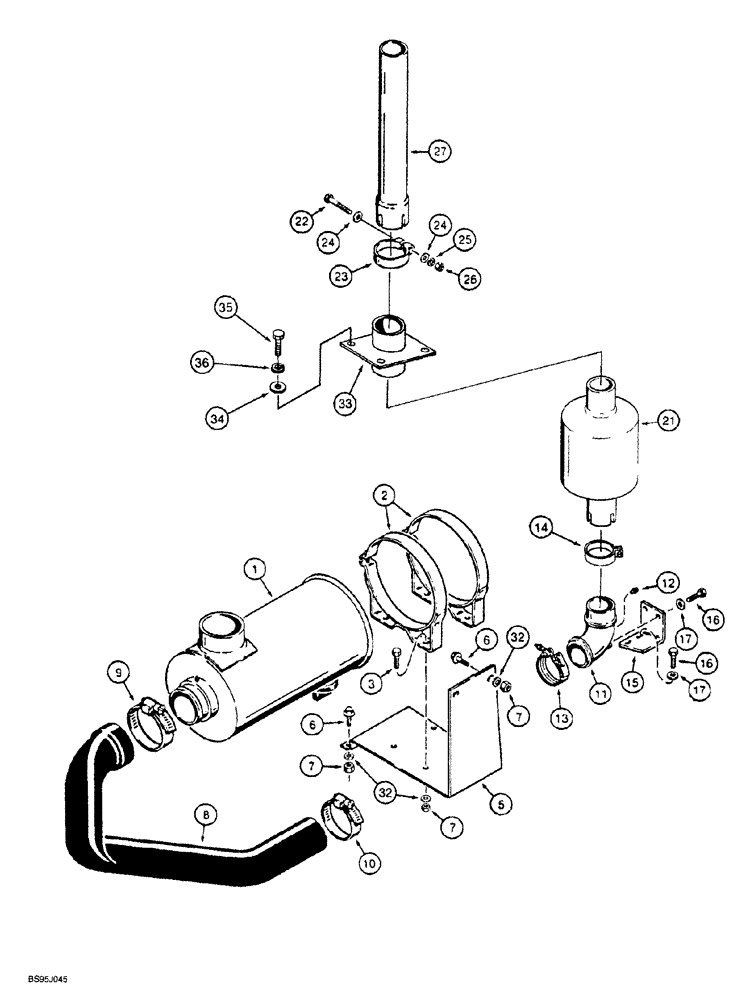

Запчасти Case 1150G (2-012) - AIR CLEANER AND MUFFLER, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

1

A170613

AIR CLEANER

ASSY., see Figure 2-014

1шт.

2

A16574

BAND

CLAMP air cleaner, includes hardware

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Replaces 413-612

4шт.

5

R54953

SUPPORT

BRACKET mounting, air cleaner

1шт.

6

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

231-1446

NUT,3/8" - 16, Gr 5

8шт.

8

R48635

INTAKE AIR HOSE,76.00 mm ID, 102 mm ID x 486.00 mm, SAE J200

Air cleaner to turbocharger

1шт.

9

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

adj., 4-1/4 - 5-1/8 inch dia, hose, at air cleaner, Replaces: 214-3172

1шт.

10

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adj., 3-1/4 - 4-1/8 inch dia, hose, at turbocharger, Replaces: 214-3256

1шт.

11

A173623

ELBOW

1шт.

12

221-841

PLUG

hex socket, 1/4 inch PT, turbo elbow

1шт.

13

A170467

CLAMP,72mm ID

includes hardware

1шт.

14

190981A1

CLAMP,76.2mm ID

band, includes hardware, at muffler

1шт.

15

A171823

BRACKET

elbow mounting

1шт.

16

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

17

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

4шт.

21

182284A1

MUFFLER

turbocharger exhaust, with side mounting bracket

1шт.

22

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

23

R27699

CLAMP,114.3mm

exhaust pipe

1шт.

24

195-81019

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

flat, 13/32 x 13/16 x 1/16 inch

2шт.

25

492-11038

LOCK WASHER,3/8"

1шт.

26

129-770

NUT,3/8"-16, G5

1шт.

27

189279A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST muffler

1шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

8шт.

33

182255A1

ANCHOR

MOUNT exhaust stack

1шт.

34

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

36

492-11038

LOCK WASHER,3/8"

4шт.
