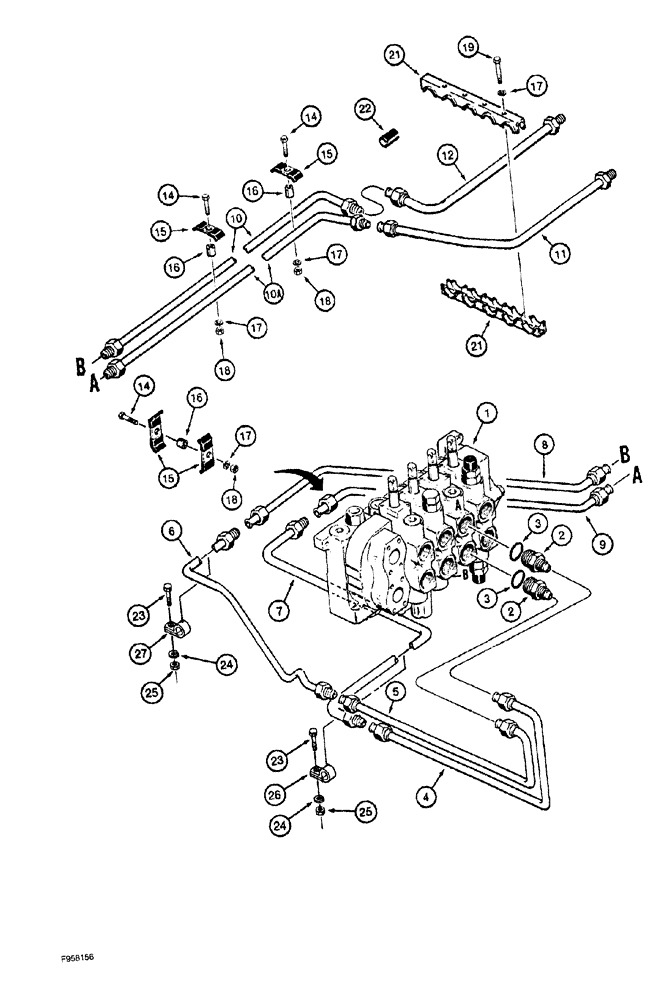

Запчасти Case 1150G (8-022) - ANGLE HYDRAULIC CIRCUIT, VALVE TO GRILLE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSY., equipment control, see Figure 8-044 or 8-046

1шт.

2

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss, male, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

R38265

TUBE,0.625" OD

at control valve, A port

1шт.

5

R38263

TUBE,0.625" OD

at control valve, B port

1шт.

6

180536A1

TUBE

from B port, upper tube

1шт.

7

180534A1

TUBE,15.875 mm OD

from A port, lower tube

1шт.

8

R38298

TUBE,0.625" OD x 23.7, 19" L

from B port, upper tube

1шт.

9

R38257

TUBE,0.625" OD x 17.34, 16.5" L

from A port, lower tube

1шт.

10

R52022

PIPE,0.625" OD

TUBE, from B port, left-hand

1шт.

10a

R52024

PIPE,15.88 mm OD x 1298, 96 mm L

TUBE, from A port, right-hand

1шт.

11

R54631

PIPE,0.625" OD

TUBE, from A port, right-hand outer at grille

1шт.

12

R51984

PIPE,15.88 mm OD x 128, 366 mm L

TUBE, from B port, left-hand outer at grille

1шт.

14

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

15

D40236

CLAMP

tubes

4шт.

16

D76209

SPACER

tubes, Replaces: D146035

3шт.

17

492-11031

LOCK WASHER,5/16"

5шт.

18

425-105

NUT,5/16"-18, G5

3шт.

19

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

R41743

CLAMP

split, two-piece

1шт.

22

R58328

BUSHING

split, tubes at clamp mounting

2шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

27

49771

CLAMP

P-type, 5/8 inch ID

1шт.
