Запчасти Case 1150G (8-020) - ANGLE & TILT HYDRAULIC CIRCUITS, GRILLE TO CYLINDERS, PRIOR TO JJG0218023 & JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

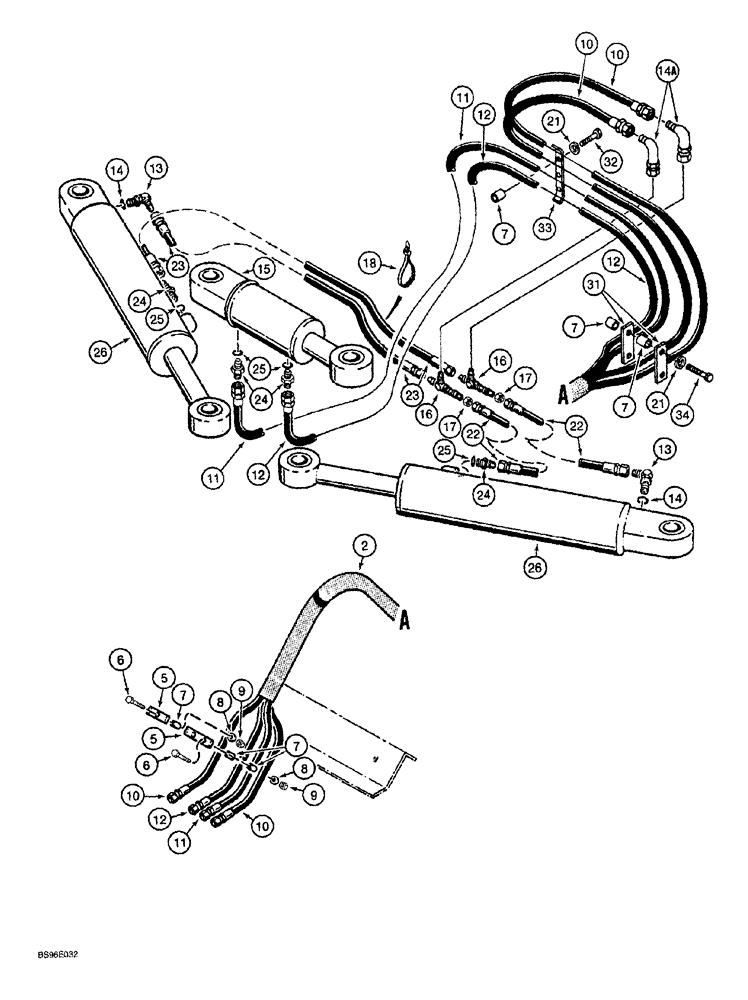

Схема запчастей Case 1150G - (8-020) - ANGLE & TILT HYDRAULIC CIRCUITS, GRILLE TO CYLINDERS, PRIOR TO JJG0218023 & JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM
6
17
34
14a
32
17
9
13
24
12
6
26
11
7
10
21
11
7
8
5
16
31
16
15
10
14
25
18
21
10
24
9
7
12
5
22
22
2
23
14
11
12
23
33
26
25
12
7
10
8
25
7
24
13

Артикул

Название

Примечание

Количество

2

142302A1

SLEEVE

hose

1шт.

5

D40236

CLAMP

left-hand, bolt to guard on main frame

2шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

7

D36040

BUSHING

SPACER clamp, 3/4 inch long

9шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

9

231-1446

NUT,3/8" - 16, Gr 5

2шт.

10

R55074

HOSE ASSY.

1880 mm (74 inch) long, Serial Range: angle,-tee

2шт.

11

185243A1

HOSE ASSY.

2134 mm (84 inch) long, right-hand tilt tube, to closed end of tilt cylinder

1шт.

12

185244A1

HOSE ASSY.

1981 mm (78 inch) long, left-hand tilt tube, to rod end of tilt cylinder

1шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14a

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

15

G110694

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

127 (5) ID x 120 mm (4-3/4 inch) stroke, tilt, see Figure 8-028

1шт.

15

87377322R

REMAN-HYD CYLINDER

1150G CASE CRAWLER TRACTOR, PRIOR TO JJG0218023 & JJG0218024 - JJG0218478, 127 (5) ID x 120 mm (4-3/4 inch) stroke, tilt (2/95-), Reman for New PN G110694

1шт.

15

87377322C

CORE-HYD CYLINDER

Return Number

1шт.

16

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

3/4-16 inch flare branch x flare x bulkhead flare

2шт.

17

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, tilt and angle hoses below tilt cylinder rod eye

2шт.

21

492-11038

LOCK WASHER,3/8"

5шт.

22

36443

HOSE

635 mm (25 inch) long, to right-hand angle cylinder

2шт.

23

R38217

HOSE,12.7mm ID x 1143mm L, SAE 100R2

1143 mm (45 inch) long, to left-hand angle cylinder

2шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 25

4шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

G110702

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

127 (5) ID x 381 mm (15 inch) stroke, angle, see Figure 8-030

2шт.

31

123171A1

LARGE PLATE

PLATE, LARGE hose clamping

2шт.

32

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

33

R40287

CLAMP

hose

1шт.

34

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

Выбрано товаров: 28
