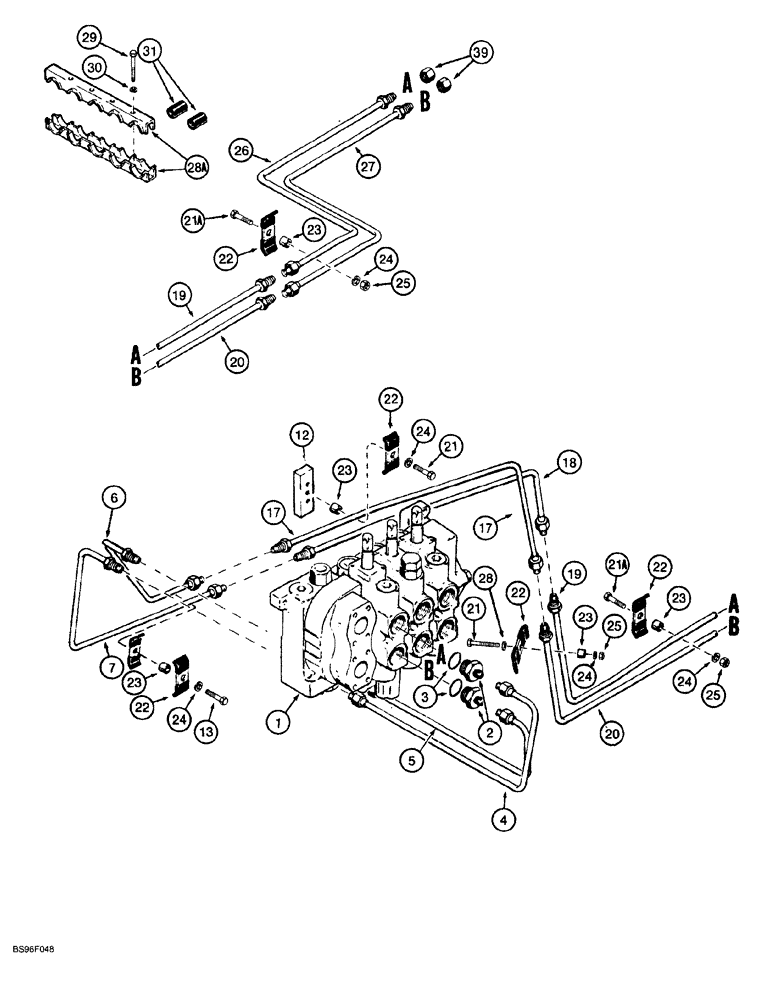

Запчасти Case 1150G (8-016) - TILT HYDRAULIC CIRCUIT, CONTROL VALVE TO GRILLE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSY., equipment control, see Figure 8-044 or 8-046

1шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 3/4-16 flare x 1-5/16-12 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

R32145

TUBE,0.5" OD

at control valve, A port, to rod end of tilt cylinder

1шт.

5

R32147

TUBE,0.5" OD

at control valve, B port, to closed end to tilt cylinder

1шт.

6

181343A1

TUBE

to control valve, B port

1шт.

7

R32192

TUBE,0.5" OD

to control valve, A port

1шт.

12

R27517

BLOCK

tapped

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

17

R30543

TUBE,0.5" OD

under floor plate, B port

1шт.

18

R29930

TUBE,0.5" OD

under floor plate, A port

1шт.

19

R27428

PIPE,0.5" OD

TUBE, along main frame, A port

1шт.

20

R30541

TUBE,0.5" OD x 45.05, 7.45" L

along main frame, B port

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

21a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

D40236

CLAMP

tubes

5шт.

23

D76208

SPACER

480 inch thick, clamp

5шт.

24

492-11038

LOCK WASHER,3/8"

5шт.

25

425-106

NUT,3/8"-16, Cl 5

3шт.

26

R54439

TUBE ASSY.,0.5" OD

to grille, A port, to rod end of tilt cylinder

1шт.

27

R54441

PIPE,0.5" OD

TUBE, to grille, B port, to closed end of tilt cylinder

1шт.

28

D41740

WASHER

flat, special, 3/8 inch

1шт.

28a

R41743

CLAMP

split, tubes at grille

1шт.

29

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1-2шт.

30

492-11031

LOCK WASHER,5/16"

1-2шт.

31

R58327

RUBBER BUSHING

split, on tube for clamp mounting

2шт.

39

218-755

CAP,37 Degree, 3/4"-16

Tubes, if used

2шт.
