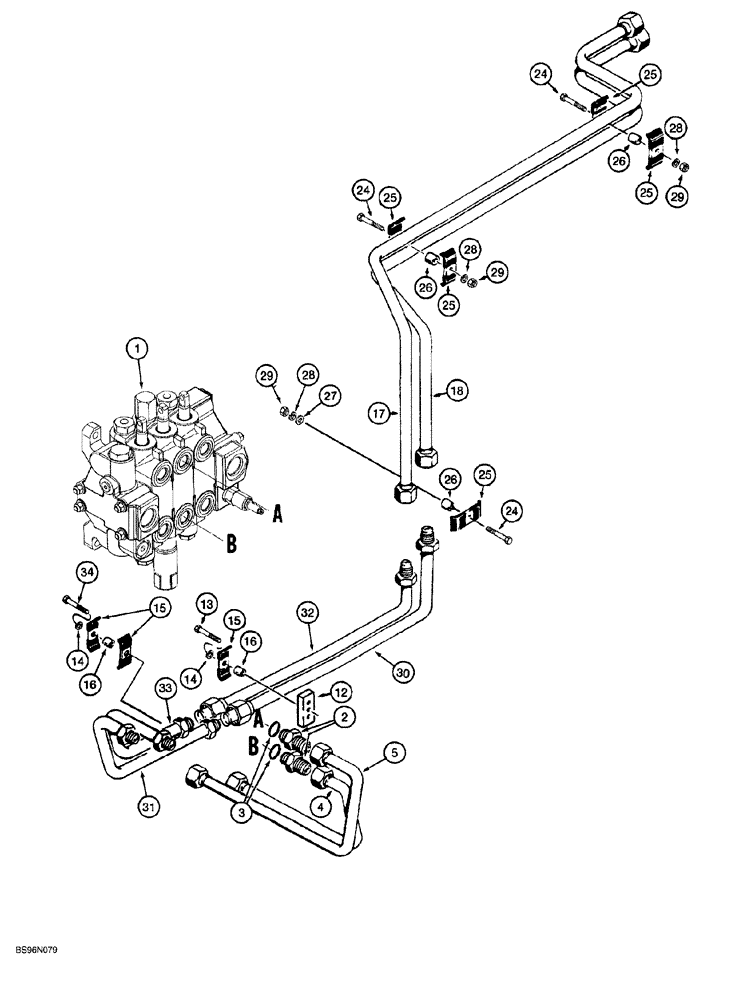

Запчасти Case 1150G (8-013A) - LIFT HYD CIRCUIT, CONTROL VALVE & TUBES TO RADIATOR SHROUD, JJG0218023 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE ASSEMBLY, equipment control, see Figure 8-060 or 8-062

1шт.

2

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-5/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

233588A1

TUBE

at control valve, lower, B port

1шт.

5

233586A1

TUBE

at control valve, upper, A port

1шт.

12

R27517

BLOCK

tapped, clamp mounting

1шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

D40236

CLAMP

tubes

3шт.

16

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

tube clamp

2шт.

17

R53964

PIPE,1" OD

TUBE upper, B port of control valve

1шт.

18

R53962

PIPE,1" OD

TUBE lower, A port of control valve

1шт.

24

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

25

D40236

CLAMP

tube

5шт.

26

D143412

SPACER,10.31mm ID x 15.81mm OD x 23.88mm L

tube clamp

3шт.

27

D41740

WASHER

flat, special, 3/8 inch

1шт.

28

492-11038

LOCK WASHER,3/8"

3шт.

29

425-106

NUT,3/8"-16, Cl 5

3шт.

30

220233A1

TUBE,25.4 mm OD

to A port, used with Ref. 31

1шт.

31

233606A1

TUBE

to A port, used with Ref. 30

1шт.

32

220228A1

TUBE

to B port, used with Ref. 33

1шт.

33

233610A1

TUBE

to B port, used with Ref. 32

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.
