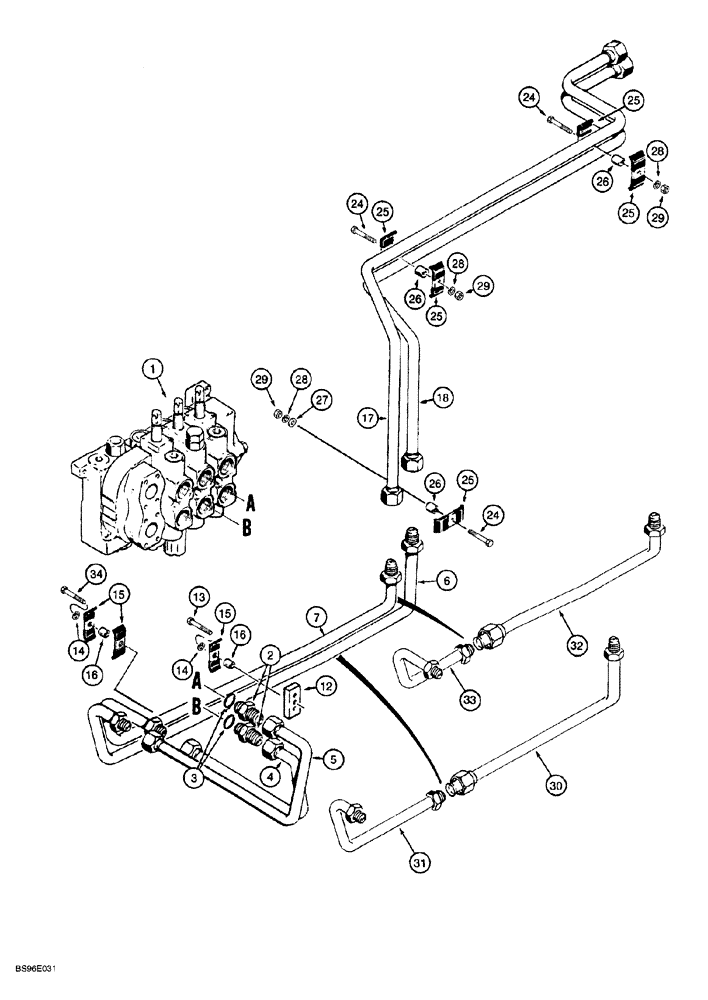

Запчасти Case 1150G (8-012) - LIFT HYD CIRCUIT CTRL VALVE & TUBES TO RADIATOR SHROUD, PRIOR TO JJG0218023/JJG0218024 - JJG0218478 (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSY., equipment control, see Figure 8-044 or 8-046
1шт.
2
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3
2шт.
4
R27411
TUBE,1" OD
at control valve, lower, B port
1шт.
5
R27419
TUBE,1" OD
at control valve, upper, A port
1шт.
6
R27413
TUBE,1" OD
intermediate, A port, one piece, if used, may be replaced by two-piece tube setup, 220233A1and 220233A1 tubes, Ref. 30 and 31
1шт.
7
R27415
TUBE,1" OD
intermediate, B port, one piece, if used, may be replaced by two-piece tube setup, 220228A1and 220230A1 tubes, Ref. 32 and 33
1шт.
12
R27517
BLOCK
tapped, clamp mounting
1шт.
13
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
14
492-11038
LOCK WASHER,3/8"
2шт.
15
D40236
CLAMP
tubes
3шт.
16
D143412
SPACER,10.31mm ID x 15.81mm OD x 23.88mm L
tube clamp
2шт.
17
R53964
PIPE,1" OD
TUBE upper, B port of control valve
1шт.
18
R53962
PIPE,1" OD
TUBE lower, A port of control valve
1шт.
24
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
3шт.
25
D40236
CLAMP
tube
5шт.
26
D143412
SPACER,10.31mm ID x 15.81mm OD x 23.88mm L
tube clamp
3шт.
27
D41740
WASHER
flat, special, 3/8 inch
1шт.
28
492-11038
LOCK WASHER,3/8"
3шт.
29
425-106
NUT,3/8"-16, Cl 5
3шт.
30
220233A1
TUBE,25.4 mm OD
to A port, used with Ref. 31, if used, replaces Ref. 6 one-piece tube used on some models
1шт.
31
220237A1
TUBE
to A port, used with Ref. 30, if used, replaces Ref. 6 one-piece tube used on some models
1шт.
32
220228A1
TUBE
to B port, used with Ref. 33, if used, replaces Ref. 7 one-piece tube used on some models
1шт.
33
220230A1
TUBE
to B port, used with Ref. 32, if used, replaces Ref. 7 one-piece tube used on some models
1шт.
34
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
Выбрано товаров: 25
