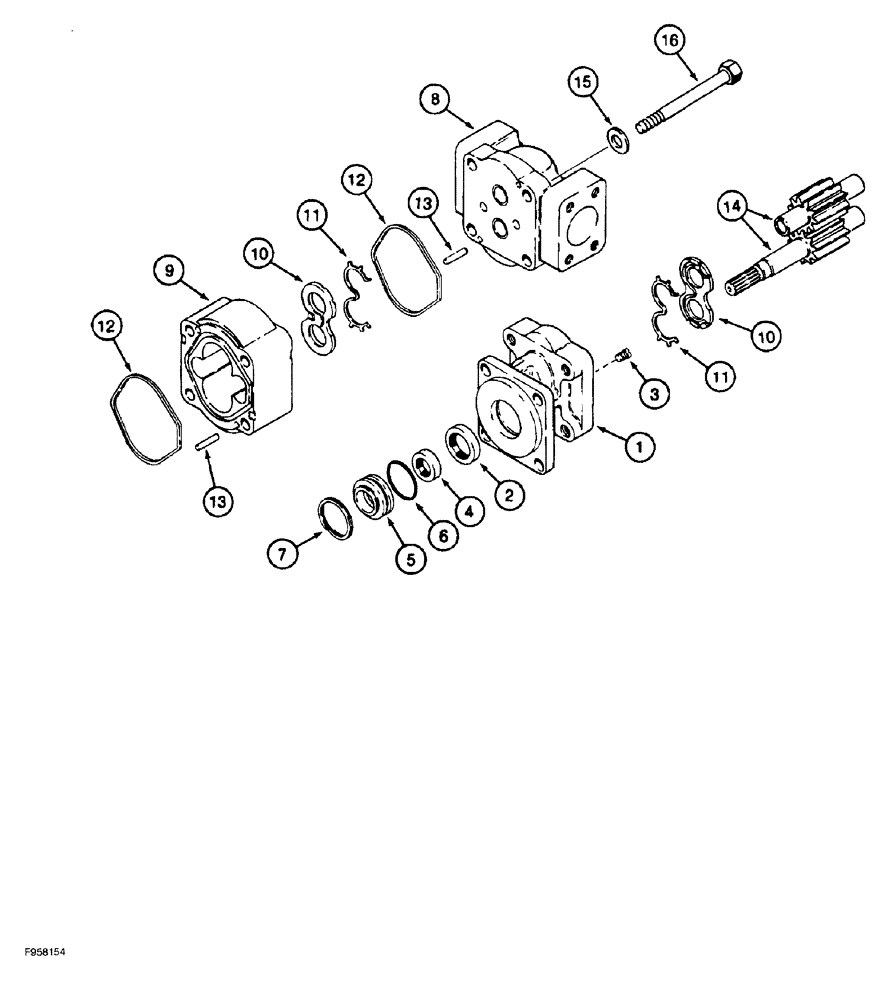

Запчасти Case 1150G (8-010) - EQUIPMENT HYDRAULIC PUMP ASSEMBLY (07) - HYDRAULIC SYSTEM

R58775

PUMP, HYDRAULIC

ASSY., equipment, 7/8 inch shaft, Includes: Ref. 1 - 16

1шт.

87604362R

REMAN-HYD PUMP

1150G (2/95-), Reman for New PN R58775

1шт.

87604362C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

107611A1

COVER ASSY

shaft end, includes (2) bushings which are not serviced separately

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

shaft

1шт.

3

L32320

PLUG

slotted, 7/16 inch NF

2шт.

4

A24845

OIL SEAL

shaft

1шт.

5

N13580

RETAINER

seal

1шт.

6

238-5134

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

1шт.

7

102-23206

SNAP RING,#206, 2.190", Int, Spiral

RING internal spiral retaining, No. 206, shaft, Replaces: 71466

1шт.

8

107612A1

COVER ASSY

closed end, includes (2) bushings which are not serviced separately

1шт.

9

N13581

HOUSING

gear, shaft end

1шт.

10

N13582

THRUST PLATE

2шт.

11

N13583

SEAL

gear housing

2шт.

12

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

gear housing

2шт.

13

W16323

DOWEL

PIN, gear housing

4шт.

14

107613A1

GEAR-SET

set of two, shaft end

1шт.

15

19-488

WASHER

flat

4шт.

16

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

BOLT hex, 5/8 NC x 5-1/4 inch

4шт.
