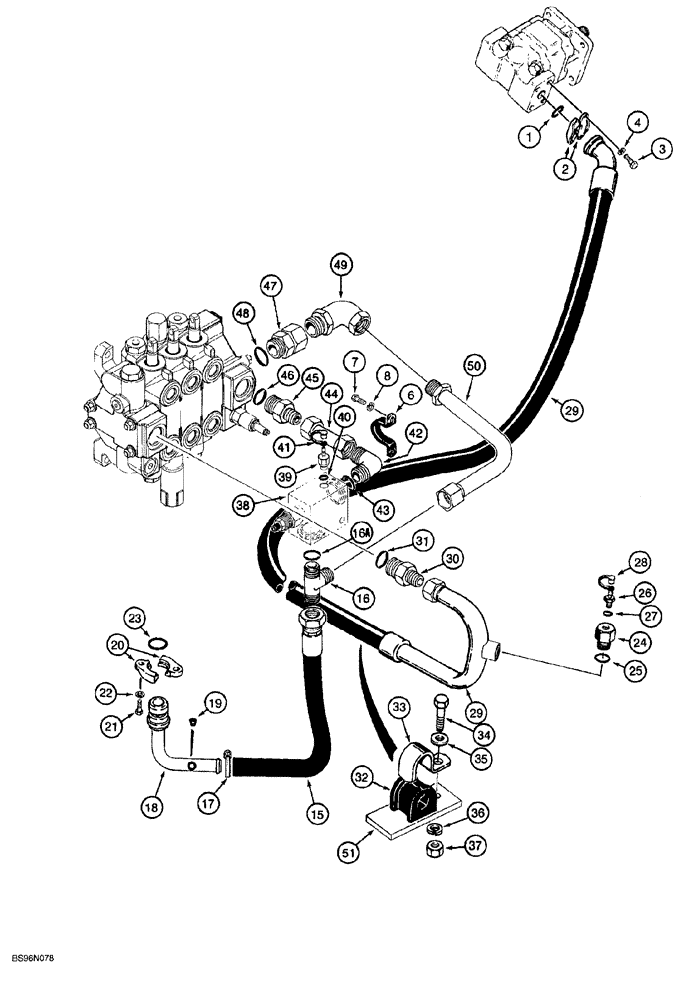

Запчасти Case 1150G (8-009A) - EQUIPMENT HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE AND RESERVOIR, JJG021803 AND JJG0218479 AND AFTER (07) - HYDRAULIC SYSTEM

1

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Flange

1шт.

2

A12301

CLAMP,Half

CLAMP split flange

2шт.

3

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

4шт.

4

492-11044

LOCK WASHER,7/16"

4шт.

6

R54274

MOUNTING CLIP

CLAMP hose

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

14

REF

INSTRUCTION

VALVE ASSY., control, see Figure 8-060 or 8-062

1шт.

15

238973A1

HOSE

return

1шт.

16

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

TEE, 1-5/16-12 inch flare branch x flare x adj. O-ring boss, at pressure relief valve lower port, Includes: Ref. 16A

1шт.

16a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

214-3128

HOSE CLAMP,1" - 1-7/8", HD Worm

adj., 1-1-7/8 inch dia.

1шт.

18

235511A1

TUBE,25.4 mm OD

return to hydraulic reservoir

1шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

20

R27612

CLAMP

split flange, at hydraulic reservoir

2шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

238-5325

O-RING,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

Gland

1шт.

24

218-5316

ADAPTER

straight, 3/4 PT x 1/4 inch female O-ring boss, Includes: Ref. 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

R55912

NIPPLE

quick disconnect, Includes: Ref. 27

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

H434163

DUST CAP

1шт.

29

233622A1

HOSE,25.4mm ID x 1398mm L

to control valve

1шт.

30

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, at valve inlet, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

D67298

INSULATOR

rubber

1шт.

33

D68845

MOUNTING CLIP

CLAMP hose

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

36

492-11038

LOCK WASHER,3/8"

1шт.

37

425-106

NUT,3/8"-16, Cl 5

1шт.

38

235513A1

VALVE

ASSY., pressure relief, component parts not serviced separately

1шт.

39

282063A1

NIPPLE, LUBE

NIPPLE COUPLER quick disconnect, Replaces: R55912, Includes: Ref. 40

1шт.

40

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

41

H434163

DUST CAP

1шт.

42

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

At relief valve inlet, Incl. Ref. 43

1шт.

43

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

44

238795A1

TUBE,25.4 mm OD, 108 mm Length

return, at valve outlet port

1шт.

45

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, at valve outlet port, Incl. Ref. 46

1шт.

46

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

47

238972A1

ROD, CONNECTING

ADAPTER special, at power beyond port, Includes: Ref. 48

1шт.

48

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

49

218-986

ADAPTER,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

ELBOW, 90°, 1-5/16-12 flare x fem straight thread

1шт.

50

235509A1

TUBE,25.4 mm OD

power beyond

1шт.

51

237062A1

SPACER

tube clamp

1шт.
