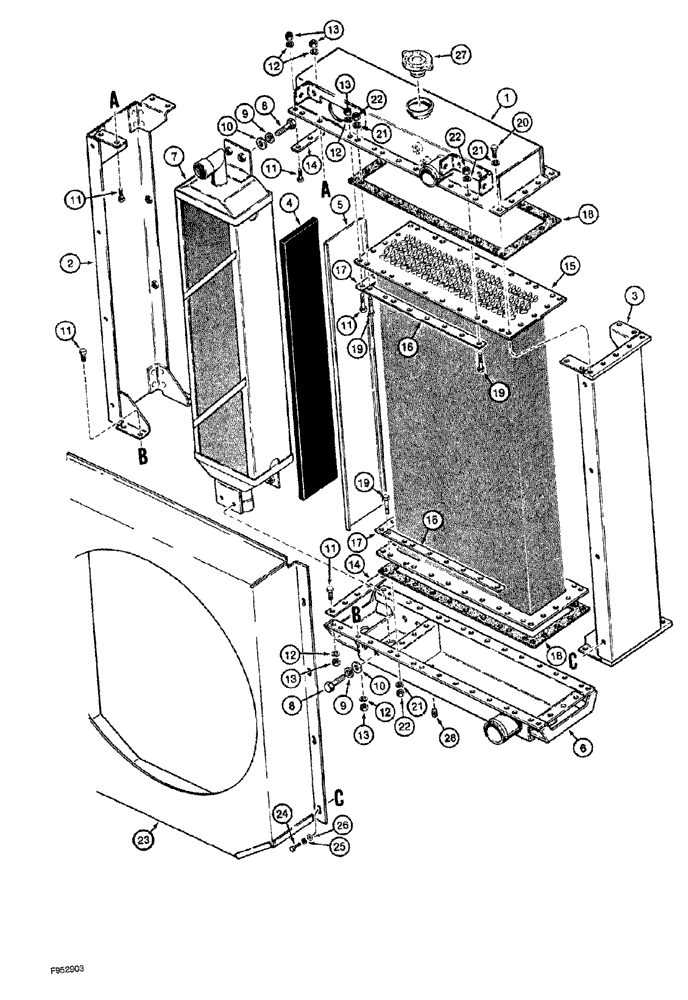

Запчасти Case 1150G (2-010) - RADIATOR ASSEMBLY (01) - ENGINE

143135A1

RADIATOR

ASSY., engine coolant, Includes: Ref. 1 - 28

1шт.

1

195326A1

RESERVOIR

TANK top

1шт.

2

N14808

PANEL, SIDE

left-hand, covers oil cooler tank

1шт.

3

N14803

PANEL, SIDE

right-hand, with panel for vibration dampener

1шт.

4

N14811

INSULATOR

vibration damper

1шт.

5

N14812

LARGE PLATE

PLATE, LARGE core reinforcement, between core and oil cooler

1шт.

6

N14801

RESERVOIR

TANK bottom

1шт.

7

N14807

OIL COOLER

oil

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Oil cooler mounting

8шт.

9

492-11038

LOCK WASHER,3/8"

8шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

8шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

12

492-11031

LOCK WASHER,5/16"

12шт.

13

425-105

NUT,5/16"-18, G5

12шт.

14

N14804

LARGE PLATE

PLATE, LARGE reinforcement, 7-1/2 inch long, upper and lower

2шт.

15

N14802

CORE, RADIATOR

CORE radiator

1шт.

16

N14805

LARGE PLATE

PLATE, LARGE reinforcement, 14-3/16 inch long, core header flange, front and rear

4шт.

17

N14804

LARGE PLATE

PLATE, LARGE reinforcement, 7-1/2 inch long, core header flange, inner

2шт.

18

N14806

GASKET

core, upper and lower

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

54шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

10шт.

21

492-11031

LOCK WASHER,5/16"

54шт.

22

425-105

NUT,5/16"-18, G5

54шт.

23

N14809

DEFLECTOR

SHROUD radiator

1шт.

24

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Shroud mounting

8шт.

25

492-11025

LOCK WASHER,1/4"

8шт.

26

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

8шт.

27

A170241

RADIATOR CAP

15 psi

1шт.

28

221-841

PLUG

hex socket, 1/4 inch PT

1шт.
