Запчасти Case 1150G (8-006) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (07) - HYDRAULIC SYSTEM

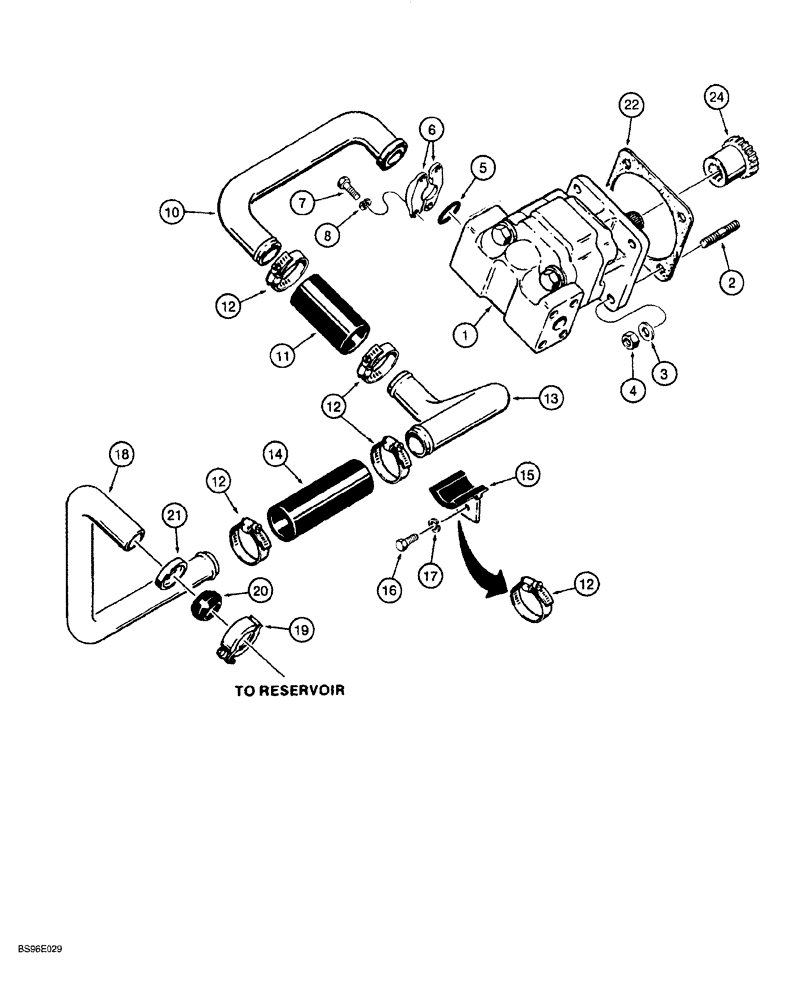

Схема запчастей Case 1150G - (8-006) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (07) - HYDRAULIC SYSTEM
17
12
4
16
8
1
18
3
6
14
12
2
21
13
19
20
12
5
11
24
12
10
15
7
22

Артикул

Название

Примечание

Количество

1

R58775

PUMP, HYDRAULIC

ASSY., equipment, 7/8 inch shaft, see Figure 8-010

1шт.

1

87604362R

REMAN-HYD PUMP

1150G (2/95-), Reman for New PN R58775

1шт.

1

87604362C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

R46073

STUD

1/2 NC x 2 inch, install short thread end into converter, housing

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

4

231-4118

LOCK NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC

4шт.

5

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

6

A14157

FLANGE

CLAMP split flange

2шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

10

R45558

TUBE,50.8 - 60.5 mm OD x 317.5, 127 mm L

at pump, Replaces: R46557

1шт.

11

R45493

HOSE,50.80 mm ID x 203.20 mm

Cut to 152 mm (6 inch) long

1шт.

12

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

5шт.

13

R43814

TUBE,2" OD

at pump

1шт.

14

R45493

HOSE,50.80 mm ID x 203.20 mm

1шт.

15

R38740

BRACKET

tube

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

R49433

PIPE,2" OD

TUBE, from reservoir to pump

1шт.

19

R30064

CLAMP

at hydraulic reservoir

1шт.

20

R30065

GASKET

tube

1шт.

21

R30066

RETAINER

gasket

1шт.

22

D32004

GASKET

pump

1шт.

24

R58784

PINION

GEAR equipment pump drive

1шт.

Выбрано товаров: 24
