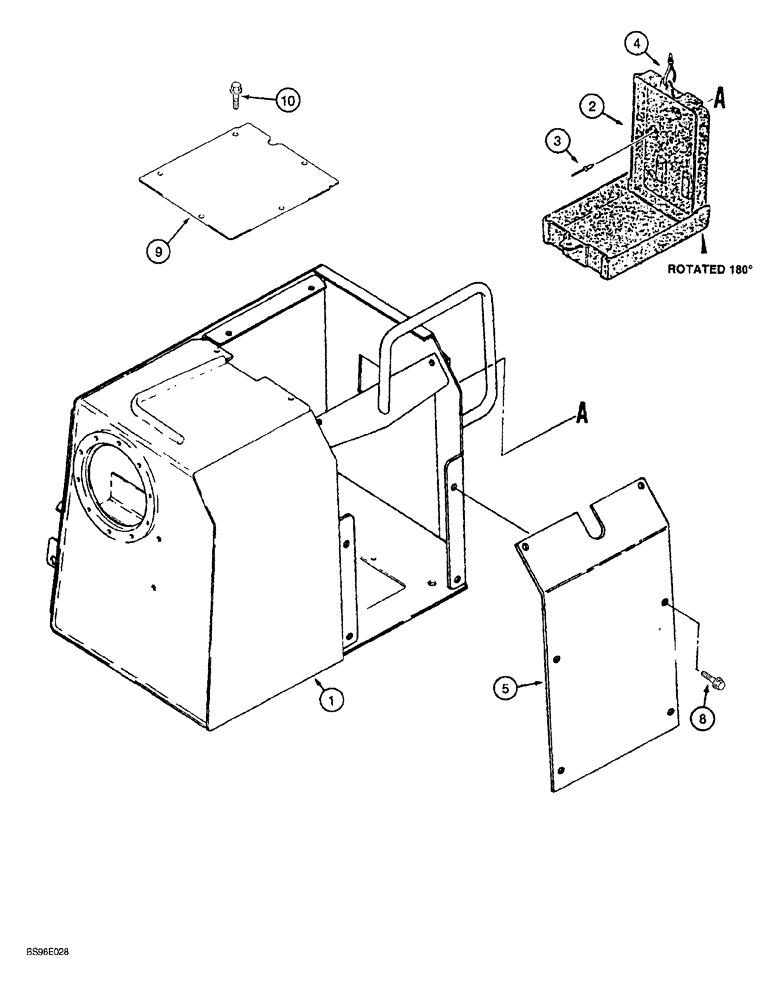

Запчасти Case 1150G (8-004) - HYDRAULIC RESERVOIR COVERS AND OPERATORS MANUAL BOX (07) - HYDRAULIC SYSTEM

1

141509A1

TANK

RESERVOIR hydraulic, see Figure 8-002, prior to JJG0218023 and JJG0218024 - JJG0218474, no longer available, order 233573A1

1шт.

1

233573A1

TANK

RESERVOIR hydraulic, see Figure 8-002, JJG0218023 and JJG0218475 and after, Replaces: 141509A1

1шт.

2

R46464

CASE

BOX operators manual

1шт.

3

151-522

RIVET,Pop, 3/16" x .575"

Break mandrel

3шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, manual box

1шт.

5

141322A1

COVER

front, models without cab

1шт.

8

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

6шт.

9

141737A1

COVER

upper, models without cab, anti-vandalism

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

5шт.
