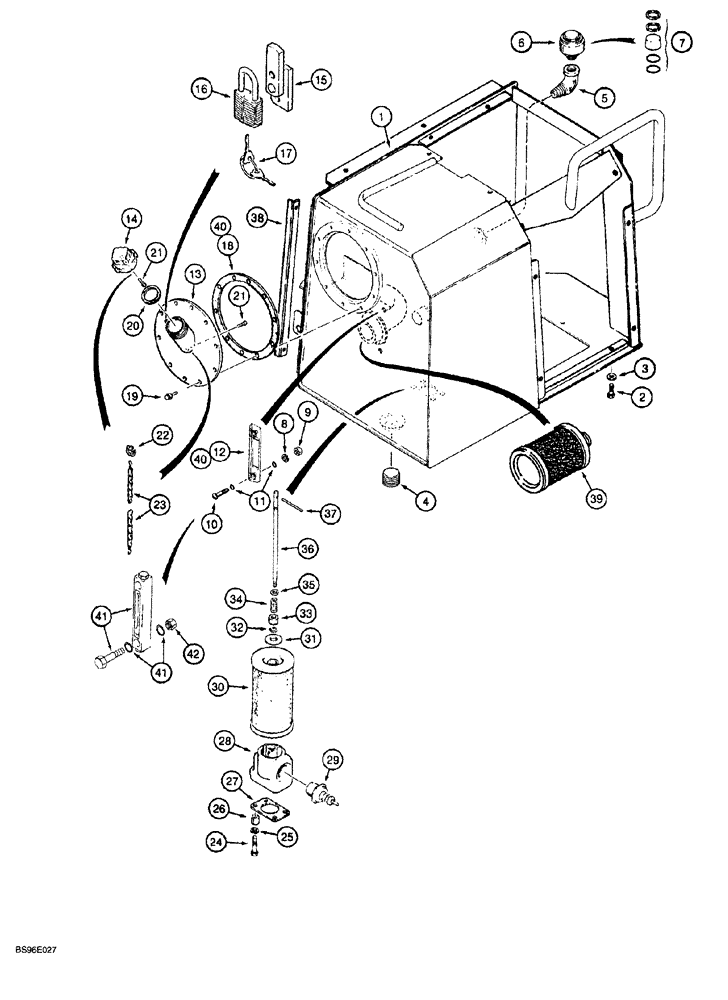

Запчасти Case 1150G (8-002) - HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

1

141509A1

TANK

RESERVOIR hydraulic, Includes: Ref. 38, prior to JJG0218023 and JJG0218024 - JJG0218474, no longer available, order 233573A1

1шт.

1

233573A1

TANK

RESERVOIR hydraulic, Includes: Ref. 38, JJG0218023 and JJG0218475 and after, Replaces: 141509A1

1шт.

2

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8 NC x 1 inch

4шт.

3

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

4

221-847

PLUG,Hex Soc, 1 1/4"-11 1/2

square socket headless, 1-1/4 inch PT, drain

1шт.

5

221-1415

ELBOW,90 Degree, 3/4"-14, NPT

ELBOW street, 90°, 3/4 inch PT

1шт.

6

R42714

BREATHER

hydraulic reservoir, Includes: Ref. 7

1шт.

7

N6475

SET

KIT breather, includes element, two O-rings and two snap rings

1шт.

L116247

GAUGE

ASSY., sight, hydraulic oil, black full line, red empty line, plastic, if used, Includes: Ref. 8 - 12

1шт.

8

892-11012

LOCK WASHER,M12

2шт.

9

829-1412

NUT,M12, Cl 10.9

2шт.

10

N13213

BOLT

BOLT special, round head, slotted, sight gauge, no longer available, order L116247

2шт.

11

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge

4шт.

12

NSS

NOT SOLD SEPARAT

GAUGE sight, order L116247 assembly

1шт.

178980A1

COVER

hydraulic reservoir, with filler tube, rear, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

COVER hydraulic reservoir

1шт.

14

L128669

CAP

filler

1шт.

15

R46704

BRACKET

TAB locking, filler cap, weld-on

1шт.

16

D93753

PADLOCK

includes keys, hydraulic reservoir cap, if used, Includes: Ref. 17

1шт.

17

R29555

KEY

for Master padlock only

2шт.

17

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

18

R46621

GASKET

rear cover

1шт.

19

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT hex flange, 3/8 NC x 3/4 inch, grade 8, Teflon-coated

10шт.

20

R46984

GASKET

filler cap

1шт.

21

301-14712

SCREW,Drive, #12 x 3/4"

Round head

2шт.

22

R48634

FASTENER

HOOK chain

1шт.

23

R47786

CHAIN (CE)

filler cap, 9-1/2 inch long

1шт.

24

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

26

T53868

BUSHING

SPACER filter mounting

2шт.

27

R27324

GASKET

filter

1шт.

28

R36277

BLOCK ASSY.

filter

1шт.

29

R27525

VALVE

bypass, filter

1шт.

R51643

HYDRAULIC OIL FILTER

ELEMENT, Includes: Ref. 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT filter

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER flat, element

1шт.

32

100-1650

SNAP RING,#50, Ext

Replaces 22824R1

1шт.

33

R56556

HOLDER

RETAINER spring

1шт.

34

F61200

SPRING

filter

1шт.

35

195-2052

WASHER,17/32" x 1 1/8" x .180"

1шт.

36

R56557

STEM

ROD filter, element

1шт.

37

135-815

GROOVED PIN,5/16" x 3", Type E, Hardened

1шт.

38

R50166

ANGLE

mounting, included in 141509A1 and 233573A1 reservoir

1шт.

39

A18789

FILTER, ENGINE OIL

FILTER, OIL suction, in-tank

1шт.

40

B17576

GASKET MAKER FLUID

SEALANT, RTV No. 595, clear, 300 ml tube

1шт.

41

226456A1

LEVEL GAUGE

Assy, Sight, Hydraulic oil, Full/cold letters, Aluminum, Incl two hollow head bolts and four O-rings which are not serviced separately, if used

1шт.

42

829-1412

NUT,M12, Cl 10.9

Used with Ref. 41 gauge, if used

2шт.
