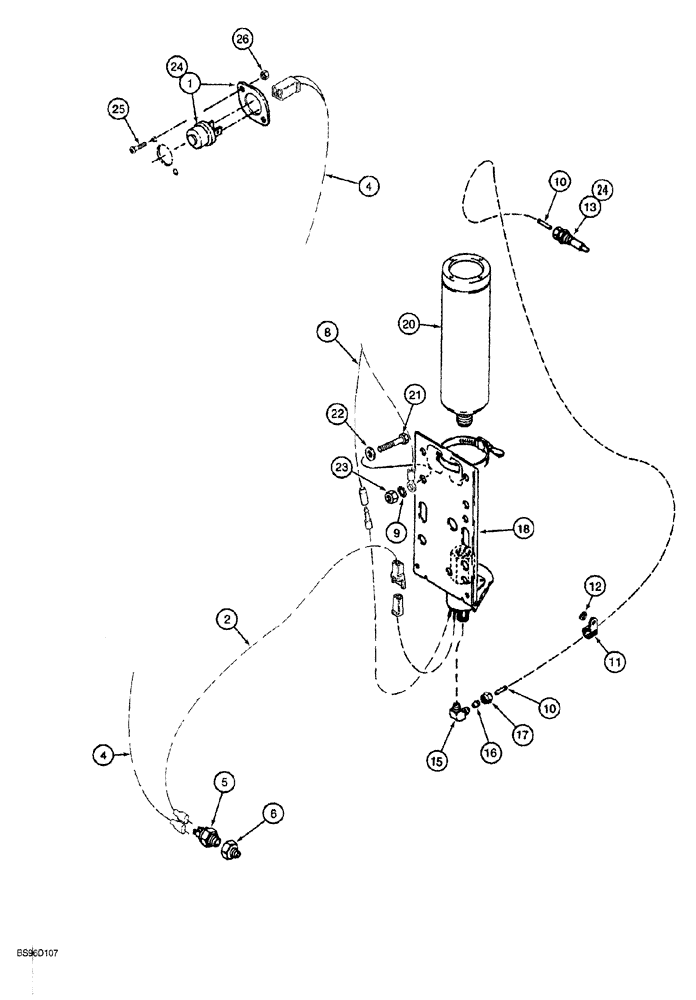

Запчасти Case 1150G (4-036) - COLD START SYSTEM (06) - ELECTRICAL SYSTEMS

1

D67872

SWITCH

push-button, cold start, on instrument panel

1шт.

2

182448A1

ELECTRICAL WIRE

WIRE cold start, 380 mm (15 inch) long, solenoid, Serial Range: valve-thermocouple

1шт.

4

143216A1

HARNESS

front wiring, see Figures 4-010, 4-014 and 4-034 for continuation of harness, prior to JJG0218023 and JJG0218024 - JJG0218474

1шт.

4a

244721A2

HARNESS

front wiring, see Figures 4-010, 4-014 and 4-034 for continuation of harness, not shown, JJG0218023 and JJG0218475 and after, Replaces: 244721A1

1шт.

5

A172117

SWITCH

THERMOCOUPLE temperature on engine

1шт.

6

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

1шт.

8

R51632

ELECTRICAL WIRE

WIRE ground

1шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

10

L19285

TUBE,0.078" ID x 0.125" OD x 48" L

nylon, 1219 mm (48 inch) long, cut from S118583X bulk tube, see below

1шт.

11

51200330

CLAMP

P-type, use engine hardware

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

A172900

NOZZLE CAP

ASSY. , atomizer, component parts not serviced separately

1шт.

15

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. Ref 16, 17

1шт.

16

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

17

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

18

A172516

VALVE

solenoid, starting fluid injection, 3 cc injection volume, with bracket, component parts not serviced separately

1шт.

20

A171940

CYLINDER

starting fluid

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

3шт.

23

425-105

NUT,5/16"-18, G5

3шт.

24

B17425

LOCTITE

SEALANT pipe threads, with Teflon, Loctite No. 92, 50 ml tube

1шт.

25

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

26

86625057

NUT,#10-24, GB

2шт.

S118583X

PLASTIC-RUBBER TUBE

TUBE bulk, nylon, 3 (1/8) OD x 7620 mm (300 inch) long

1шт.
