(4-035A) - HORN, MODELS WITH ONE HORN

Запчасти Case 1150G (4-035A) - HORN, MODELS WITH ONE HORN (06) - ELECTRICAL SYSTEMS

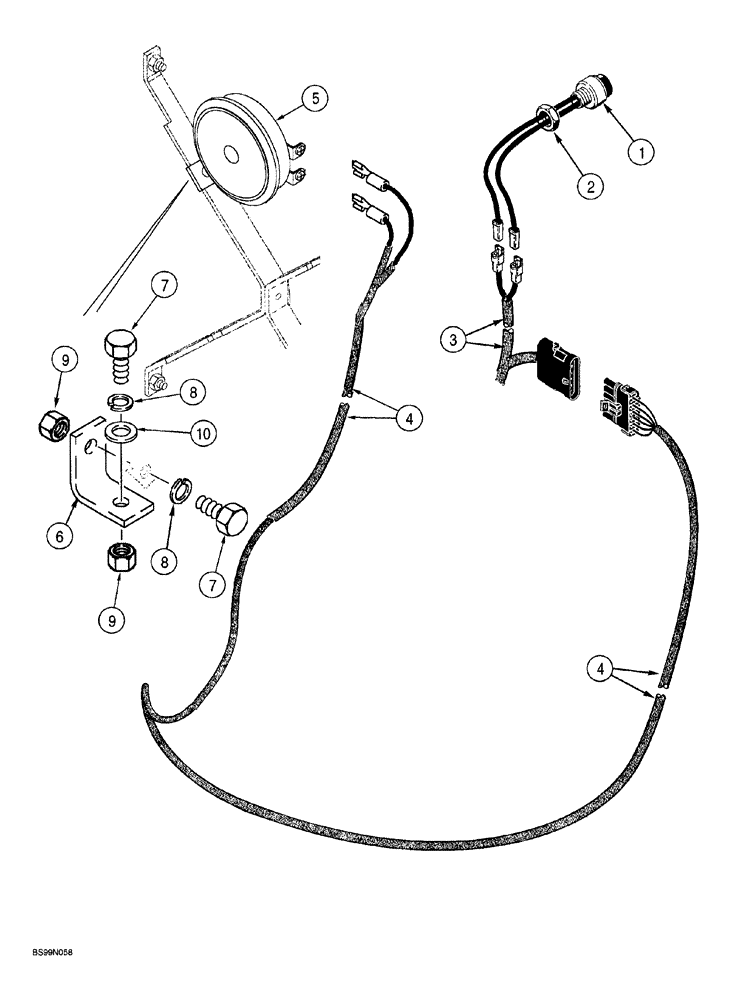

Схема запчастей Case 1150G - (4-035A) - HORN, MODELS WITH ONE HORN (06) - ELECTRICAL SYSTEMS
10
1
2
5
9
8
4
6
4
7
9
8
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R58727

SWITCH

push-button

1шт.

2

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

3

107226A1

HARNESS

rear wiring, see Figure 4-016 for continuation of harness

1шт.

4

244721A2

HARNESS

front wiring, see Fig. 4-014 for continuation of harness

1шт.

5

346257A1

HORN

24 volt

1шт.

6

341258A1

BRACKET

mounting, mounts to radiator brace, see Figure 9-026, Ref. 38

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.
