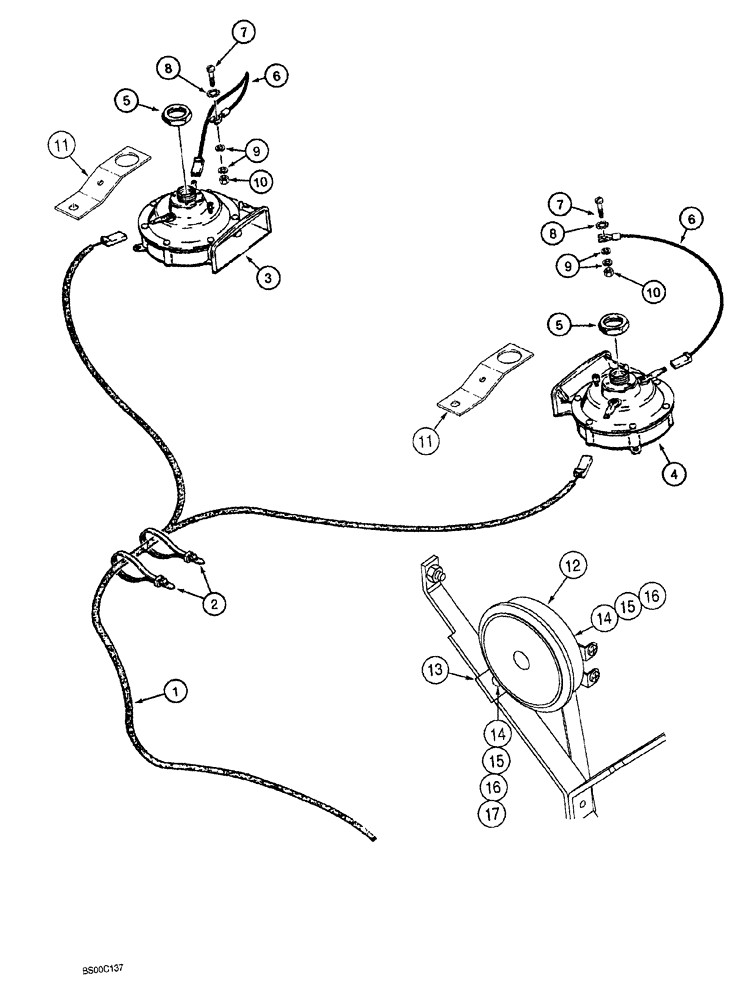

Запчасти Case 1150G (4-034) - HORN, MODELS WITH TWO HORNS (06) - ELECTRICAL SYSTEMS

1

143216A1

HARNESS

front wiring, see Figures 4-010, 4-014 and 4-036 for continuation of front harness, prior to JJG0218023 and JJG0218024 - JJG0218474

1шт.

1a

244721A2

HARNESS

front wiring, see Figures 4-010, 4-014 and 4-036 for continuation of front harness, not shown, JJG0218023 and JJG0218475 and after, Replaces: 244721A1

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, harness to radiator hose

1шт.

3

D77650

HORN

A note, 24 volt, left-hand, includes a bracket that is not used on this crawler

1шт.

When stock is exhausted, order 346582A1 horn service kit, which includes the 7-14320 Instruction Sheet.

1шт.

4

R45461

HORN

F note, 24 volt, right-hand, includes a bracket that is not used on this crawler

1шт.

When stock is exhausted, order 346582A1 horn service kit, which includes the 7-14320 Instruction Sheet.

1шт.

5

L30866

LOCK NUT

hex, special

2шт.

6

R36131

ELECTRICAL WIRE

WIRE ground

2шт.

7

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

8

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

(3/16")

2шт.

9

492-11010

LOCK WASHER,#10

4шт.

10

225-14110

NUT,#10-24

2шт.

11

R58788

BRACKET

horn mounting

2шт.

346582A1

KIT

horn

1шт.

12

346257A1

HORN

24 volt

1шт.

13

341258A1

BRACKET

mounting

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

425-105

NUT,5/16"-18, G5

2шт.

16

492-11031

LOCK WASHER,5/16"

2шт.

17

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

1шт.
