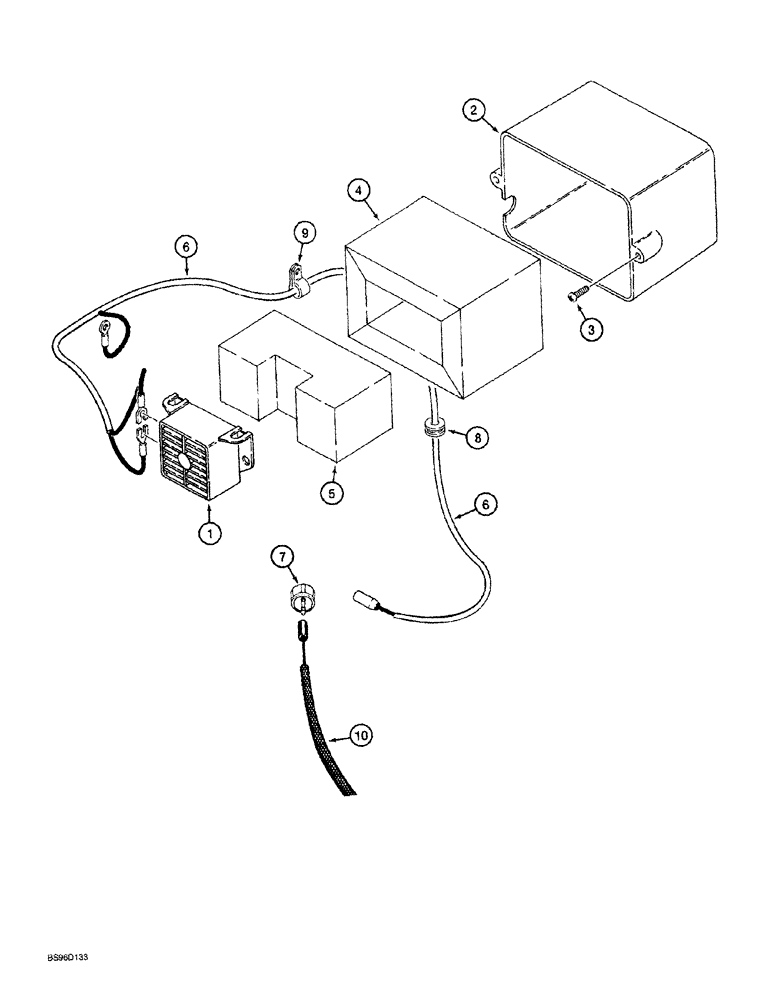

Запчасти Case 1150G (4-032) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

L112318

ALARM

backup, mounted on rear access door

1шт.

2

R50647

BOX

COVER plastic, backup alarm

1шт.

3

261-55712

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

4

R50648

FOAM

SEAL, backup alarm box

1шт.

5

R51815

PAD

foam, 51 (2) x 64 (2-1/2) x 254 mm (10 inch) long, cut a double thickness from R30870 bulk foam, see below

1шт.

6

107227A1

ELECTRICAL WIRE

WIRE backup alarm, includes ground wire

1шт.

7

D139904

SWITCH

pressure, backup alarm, identification color black, if used

1шт.

See Figure 6-030 for wiring connections at transmission.

1шт.

7

D99796

SWITCH

pressure, backup alarm, identification color yellow, if used

1шт.

See Figure 6-030 for wiring connections at transmission.

1шт.

8

A23870

GROMMET

backup alarm wire, at seat mounting angle

2шт.

9

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Harness and ground wire, Uses rear door hinge mounting hardware

1шт.

10

107226A1

HARNESS

rear wiring, see Fig. 4-16 for complete harness

1шт.

R30870

PAD

bulk, 1372 (54) x 1829 (72) x 25 mm (1 inch) thick

1шт.
