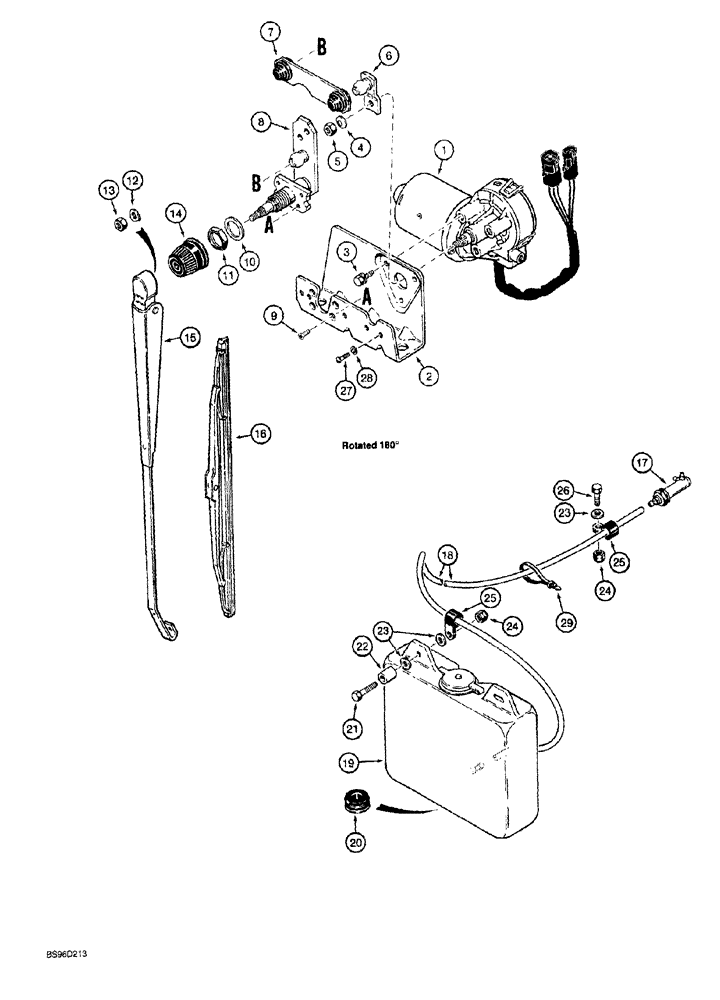

Запчасти Case 1150G (4-030) - FRONT WIPER AND WINDSHIELD WASHER (06) - ELECTRICAL SYSTEMS

A187672

WIPER MOTOR

MOTOR, WIPER ASSY., windshield, with bracket, 24 volt, Includes: Ref. 1 - 9

1шт.

1

A187535

WIPER MOTOR

MOTOR, WIPER windshield, 24 volt

1шт.

2

N8359

SUPPORT

BRACKET windshield wiper assembly

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

with washer, special

3шт.

4

N8361

SPRING WASHER

Belleville

1шт.

5

L112090

NUT

hex, special, shaft end

1шт.

6

N8360

SUPPORT

ARM drive

1шт.

7

N8358

LINK

LINK wiper

1шт.

8

N14112

SHAFT

pivot

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

special, pivot shaft to bracket

4шт.

10

L112088

WASHER

special, large, shaft

1шт.

11

L112087

NUT

special, shaft

1шт.

12

L112089

WASHER

wave, special, shaft end

1шт.

13

L112090

NUT

hex, special, shaft end

1шт.

14

L112081

CAP

pivot shaft end

1шт.

15

A186222

WIPER ARM,Single, 475mm L

ARM, WIPER front, 475 mm (18-3/4 inch) long, complete

1шт.

16

243953A1

WINDSHIELD WIPER

BLADE arm, complete

1шт.

17

S117715

NOZZLE INJECTION

windshield washer

1шт.

18

1999486C1

HOSE

5790 mm (228 inch) long, windshield washer

1шт.

19

A187527

RESERVOIR ASSY.

windshield wiper fluid, with pump, component parts not serviced separately

1шт.

20

A23870

GROMMET

retainer

1шт.

21

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

22

R58606

SPACER

reservoir

2шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Replaces 496-41041

5шт.

24

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self locking, 3/8 inch NC

3шт.

25

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Backup alarm wire and tube

2шт.

26

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

27

182-580

SCREW,Slotted Pan Hd, 1/4"-28 X 3/4"

machine, pan head slotted, 1/4 NF x 3/4 inch

1шт.

28

492-11025

LOCK WASHER,1/4"

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, backup alarm wire and tube

3шт.
