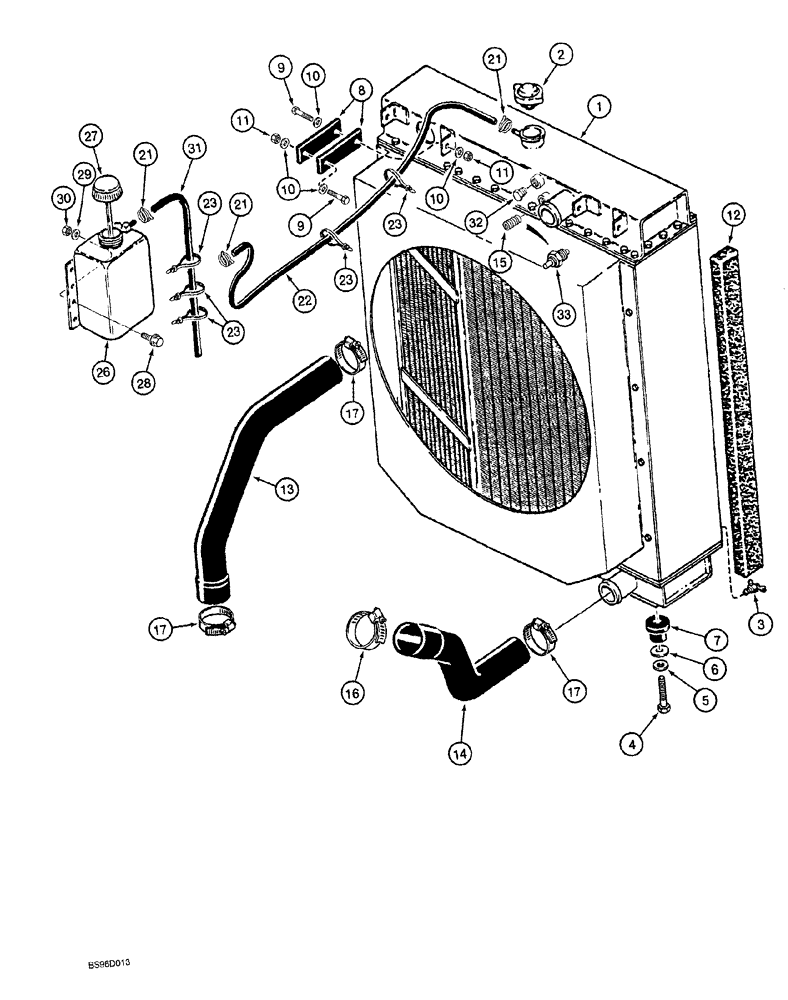

Запчасти Case 1150G (2-006) - RADIATOR MOUNTING, COOLANT RECOVERY AND AIR VENTING SYSTEM (01) - ENGINE

1

143135A1

RADIATOR

ASSY., engine coolant, see Figure 2-010

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

217-92

COCK

VALVE, 1/4 inch PT

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

6

D25022

WASHER

flat, special, 17/32 x 1-3/4 x 3/16 inch

2шт.

7

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

INSULATOR vibration

2шт.

8

D73500

STRAP

radiator mounting

4шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

10

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

flat, special, 3/8 inch

8шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

R53624

PAD

non-recirculating, 2 x 31-5/16 inch, if used

2шт.

12

352485A1

SEAL

PAD non-recirculating, 1 x 31-1/2 inch, if used

2шт.

13

R54837

RADIATOR HOSE,45.00 mm ID, 51.00 mm ID x 465.00 mm, SAE 20R4 Class C or SAE 20R4 Class D1

radiator, upper

1шт.

14

R54838

RADIATOR HOSE,51.00 mm ID, 58.00 mm ID x 423.00 mm, SAE 20R4

Lower

1шт.

15

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

Not used in this application, remove and replace with S119340, Ref. 33

1шт.

16

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

Adj, upper radiator hose

1шт.

17

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

Radiator hoses and tube

3шт.

21

A171099

HOSE CLAMP,13.2mm - 15.4mm

spring type

3шт.

22

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Cut from L126767 Bulk Hose, See below, Radiator to Coolant Bottle

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, coolant hose to transmission cooler tube

5шт.

26

L127093

RESERVOIR

coolant, recovery

1шт.

27

1547924C1

CAP

recovery bottle, tethered, coolant recovery bottle

1шт.

28

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

29

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

4шт.

30

231-1445

NUT,5/16"-18, GB

4шт.

31

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Cut from L126767 Bulk Hose, Coolant Bottle Drain

1шт.

32

217-86

PLUG,Hex Hd, 1/4"-18, Brass

PT

1шт.

33

S119340

SENSOR

coolant level, see Figure 4-014 for harness

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces, buy locally

1шт.
