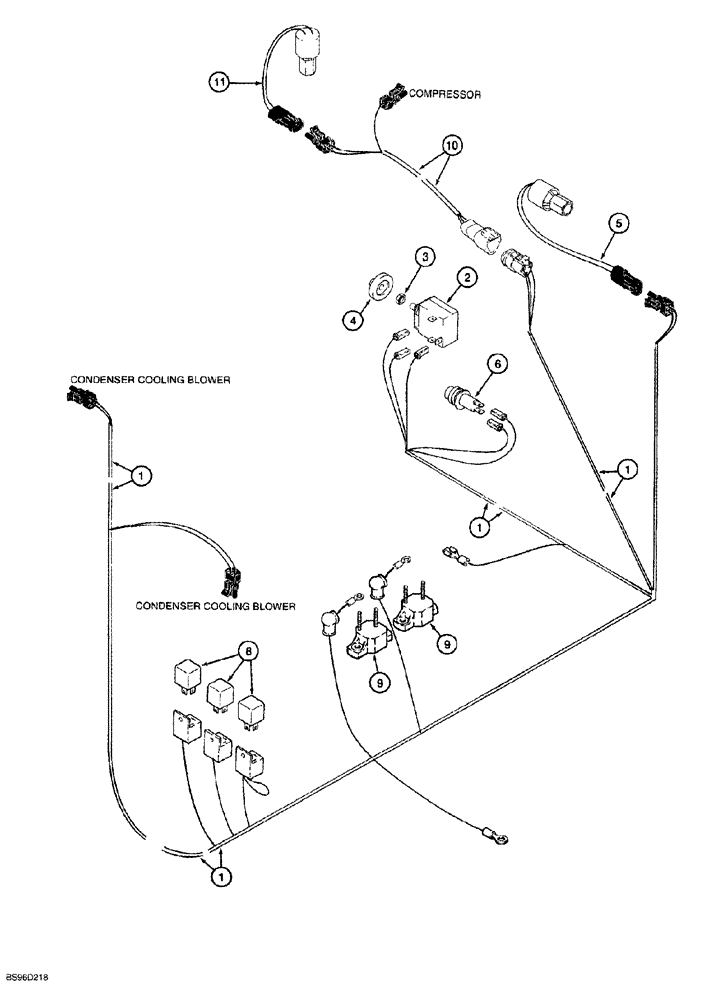

Запчасти Case 1150G (4-026) - CAB AIR CONDITIONING HARNESS (06) - ELECTRICAL SYSTEMS

1

1546446C1

HARNESS

air conditioning

1шт.

2

A187954

SWITCH

SWITCH - air conditioning thermostat

1шт.

3

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, 7/16 inch NC

1шт.

4

1999846C1

KNOB

switch

1шт.

5

122579A1

SWITCH, A/C LOW PRES

Low, air conditioning

1шт.

6

A187881

LAMP

amber lens, No. 1820, pressure indicator, Includes: Ref. 7

1шт.

7

T39215

BULB

No. 1820, not shown

1шт.

8

198161A1

RELAY

mini, 24 volt

3шт.

9

A187825

RELAY

BREAKER circuit, 10 ampere

2шт.

10

R58601

HARNESS

cab, air conditioning, high pressure switch and compressor to main cab harness

1шт.

11

232948A1

SWITCH, A/C HIGH PRE

400 psi, Replaces 1999925C1

1шт.
