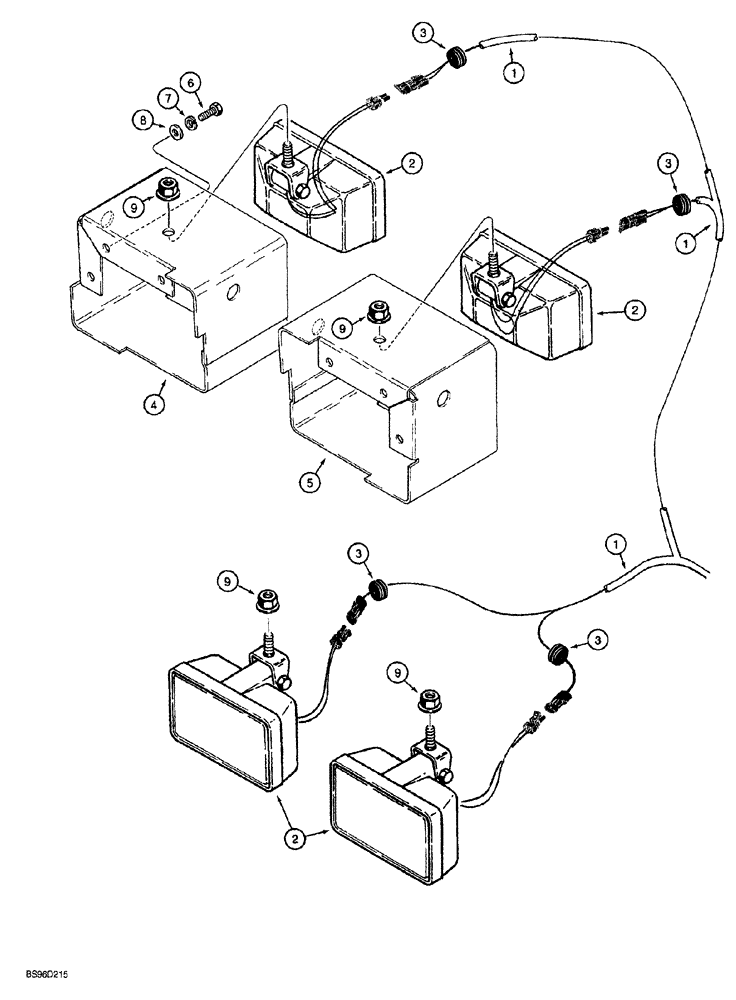

Запчасти Case 1150G (4-020) - LAMPS AND WIRING, MODELS WITH ROPS CAB, WITH OR WITHOUT REAR BRUSH SCREEN (06) - ELECTRICAL SYSTEMS

1

1546445C1

HARNESS

main wiring, cab, see Figure 4-024 for complete harness

1шт.

2

229488A1

HEADLIGHT,24V

KIT flood lamp, 24 volt, front and rear, see Figure 4-022

4шт.

3

1546464C1

GROMMET

harness

4шт.

4

1999472C1

GUARD

BRACKET lamp mounting, left-hand front

1шт.

5

1999471C1

GUARD

BRACKET lamp mounting, right-hand front

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.
