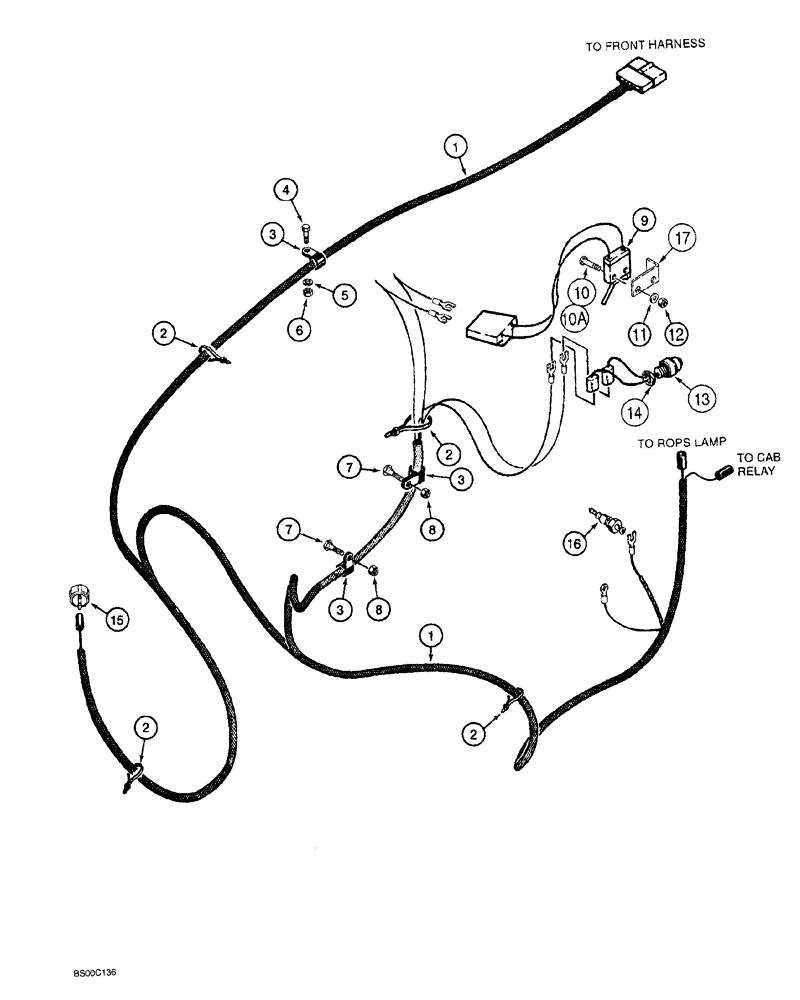

Запчасти Case 1150G (4-016) - REAR WIRING HARNESS AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

107226A1

HARNESS

rear wiring

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

3

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

3шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT carriage, 3/8 NC x 1 inch, grade 2

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

2шт.

9

1343288C2

LIMIT SWITCH

neutral start, brake relay

1шт.

10

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

1-2шт.

10a

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

machine, pan Phillips, No. 6 NC x 1-1/4 inch, if used

1шт.

11

495-21019

WASHER,#8

1шт.

12

231-14106

NUT,#6-32, GB

hex, self-locking, No 6 NC

2шт.

13

R58727

SWITCH

push-button, horn

1шт.

14

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex, Horn push-button switch

1шт.

15

D99796

SWITCH

pressure, backup alarm, identification color yellow, if used

1шт.

15

D139904

SWITCH

pressure, backup alarm, identification color black, if used

1шт.

16

N13268

PRESSURE SWITCH

ASSY., restriction, electrical, see Figure 6-042

1шт.

17

310719A1

COVER

neutral switch

1шт.
