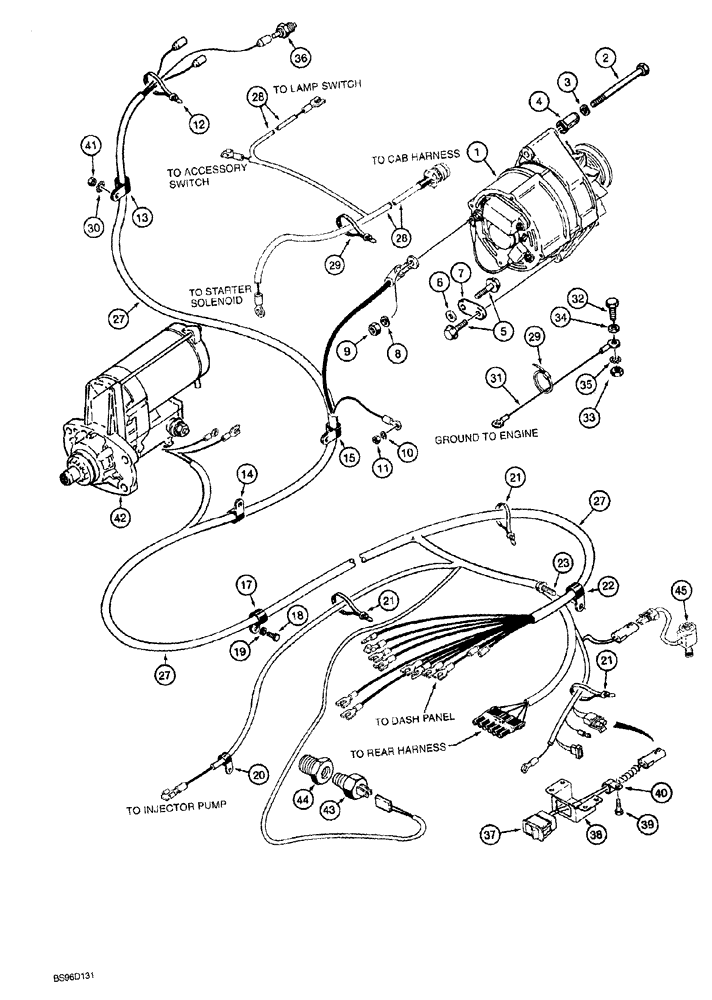

Запчасти Case 1150G (4-014) - FRONT WIRING HARNESS AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

A187916

ALTERNATOR,24V, 45A

ASSY., engine, see Figure 4-004

1шт.

2

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

4

J902469

SPACER

alternator mounting, upper

1шт.

5

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

Heavy

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

flat, special, 3/8 inch

1шт.

7

J903089

SUPPORT

BRACE alternator mounting

1шт.

8

892-11008

LOCK WASHER,8mm ID

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

10

892-11005

LOCK WASHER,M5

1шт.

11

825-1405

NUT,M5, Cl 8

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

13

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type

1шт.

14

49836

CLAMP

P-type, 1/2 inch ID

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

17

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type

2шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

19

892-11012

LOCK WASHER,M12

2шт.

20

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

22

D34033

CLAMP

P-type, 1 - 3/16 inch ID

1шт.

23

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

27

143216A1

HARNESS

front wiring, see Figures 4-010, 4-034 and 4-036 for continuation of front harness, prior to JJG0218023 and JJG0218024 - JJG0218474

1шт.

27a

244721A2

HARNESS

front wiring, see Figures 4-010, 4-034 and 4-036 for continuation of front harness, not shown, JJG0218023 and JJG0218475 and after, Replaces: 244721A1

1шт.

28

R58600

HARNESS

cab models, starter solenoid to main cab harness

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

30

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

1шт.

31

143513A1

ELECTRICAL WIRE

WIRE ground, radiator

1шт.

32

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

33

425-106

NUT,3/8"-16, Cl 5

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

36

S119340

SENSOR

radiator coolant level, use with No 242 blue Loctite, see below

1шт.

37

144430A3

SWITCH

high/low range, two-speed, located on armrest

1шт.

38

144212A1

ANCHOR

MOUNT high-low switch, located on armrest

1шт.

39

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

5шт.

40

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

P-type, 1/4 inch ID

1шт.

41

231-1446

NUT,3/8" - 16, Gr 5

1шт.

42

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSY., engine, see Figures 4-002, 4-012

1шт.

42

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

42

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

42

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

43

A172117

SWITCH

THERMOCOUPLE cold start, temperature on engine

1шт.

44

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

Thermocouple to engine

1шт.

45

349297A1

SOLENOID VALVE

VALVE ASSY., 24 volt, see Figure 6-026, Replaces: 130761A1

1шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
