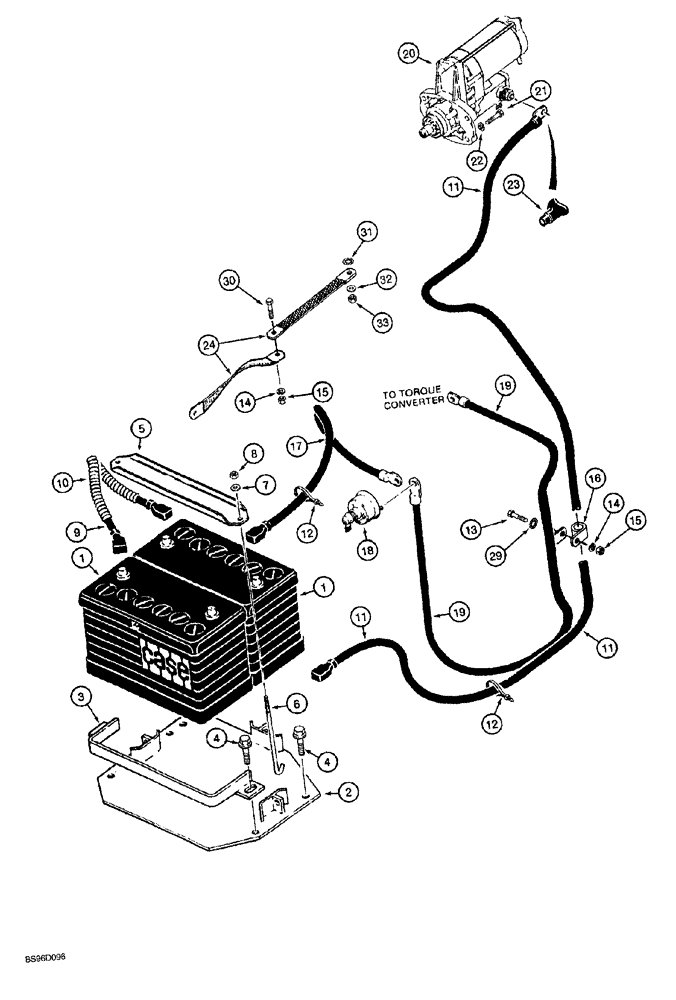

Запчасти Case 1150G (4-012) - BATTERY MOUNTING, CABLES AND STARTER (06) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12 volt

2шт.

2

R51652

SUPPORT

PLATE battery mounting

1шт.

3

R51654

SUPPORT

BRACKET battery retaining

1шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

3шт.

5

R46490

BRACKET

battery hold down

1шт.

6

R27652

ROD

BOLT J-type

2шт.

7

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

2шт.

8

231-1445

NUT,5/16"-18, GB

2шт.

9

177504A1

CABLE

jumper, Replaces: R47221

1шт.

10

R51835

LOOM

CONDUIT, 127 mm (5 inch) long, cut from R44806 bulk, see below

1шт.

11

R57564

CABLE

battery, Serial Range: positive,-starter

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, cables and harnesses

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

1шт.

17

R47203

CABLE

battery, negative

1шт.

18

R52278

SWITCH

master disconnect

1шт.

19

141782A1

CABLE

battery ground, includes clamp, use torque converter mounting, Serial Range: hardware-ground

1шт.

20

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSY., engine, see Figure 4-002

1шт.

20

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

20

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

20

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

22

892-11010

LOCK WASHER,M10

3шт.

23

L126713

BOOT

plastic, battery cable at starter

1шт.

24

D73383

STRAP

ground, cab models, uses existing master disconnect switch hardware

2шт.

29

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

32

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm, replaces copper washer

1шт.

33

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC, replaces copper nut

1шт.

R44806

LOOM

CONDUIT bulk, 2248 mm (88-1/2 inch) long

1шт.
