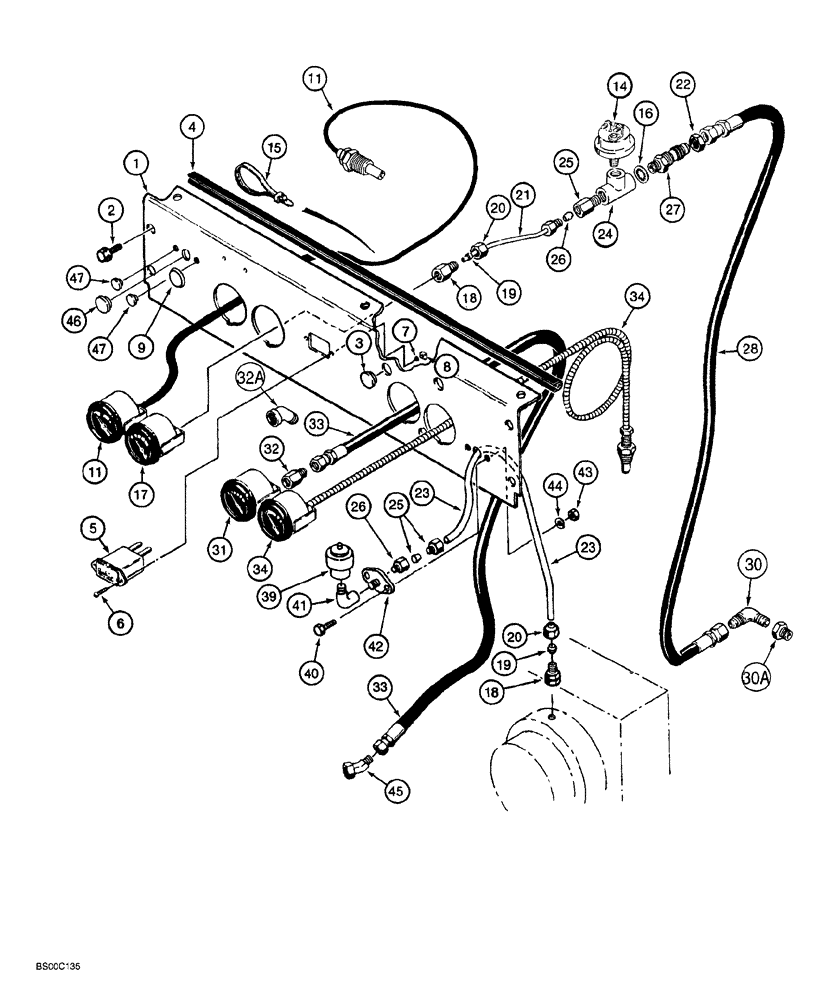

Запчасти Case 1150G (4-006) - INSTRUMENT PANEL AND GAUGES (06) - ELECTRICAL SYSTEMS

1

142079A1

PANEL

instrument, includes decal, for decal part number see Figure 9-072

1шт.

2

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

3

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, if used

1-4шт.

4

192336A1

MOLDING

TRIM, 864 mm (34 inch) long, cut from F42827 bulk trim, see below, instrument panel

1шт.

5

L107631

METER

HOUR engine

1шт.

6

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

2шт.

7

492-11005

LOCK WASHER,#5

2шт.

8

224-10005

SQUARE NUT,Sq, #5-40

square, No. 5 NC

2шт.

9

A187881

LAMP

amber lens, No. 1820, alternator indicator, Includes: Ref. 10

1шт.

10

T39215

BULB

No. 1820, not shown

1шт.

11

357042A1

GAUGE

engine temperature, use with No. 242 blue Loctite, see below, Replaces: R52133

1шт.

14

D28796

SWITCH

engine oil pressure

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, cables and hoses

1шт.

16

493-21052

LOCK WASHER,Int Tooth, 1/2"

internal tooth lock, 1/2 inch

1шт.

17

357040A1

GAUGE

engine oil pressure, Replaces: R49132

1шт.

D35091

PIPE FITTING

ADAPTER ASSY., straight, compression, Includes: Ref. 18 - 20

2шт.

18

NSS

NOT SOLD SEPARAT

BODY adapter

2шт.

19

D37176

SLEEVE

compression

2шт.

20

D37362

TUBE NUT

compression

2шт.

21

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

TUBE nylon, 530 mm (20 - 7/8 inch) long, cut from L60539X bulk tube, see below, Replaces: A152199

1шт.

22

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

23

R45449

PLASTIC-RUBBER TUBE,1/8" OD x 26.5" L

nylon, 673 mm (26 - 1/2 inch) long, cut from A138483 bulk tube, see below

1шт.

24

217-1160

TEE,1/8"-27 Female

pipe, 1/8 inch female

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER compression, 1/8 tube O.D. x 1/8 inch PT, Includes: Ref. 25, 26

2шт.

25

NSS

NOT SOLD SEPARAT

BODY adapter

1шт.

26

222-500

TUBE NUT,5/16" - 24 NPT

hex, 1/8 tube O.D. x 5/16-24 inch, includes sleeve

1шт.

27

R58667

FITTING

ADAPTER bulkhead, male

1шт.

28

D95117

HOSE

1448 mm (57 inch) long, engine oil pressure

1шт.

30

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90°, 7/16-20 flare x 1/8 inch PT, use with No. 242 blue Loctite, see below, Replaces: 218-1066

1шт.

30a

250838A2

HYD CONNECTOR

M10 x 1/8 inch PT, engine oil pressure

1шт.

31

357041A1

GAUGE

transmission oil pressure, Replaces: 138860A1

1шт.

32

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

straight, 7/16-20 flare x 1/8 inch female PT, if used

1шт.

32a

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, if used

1шт.

33

R58666

HOSE ASSY.

762 mm (30 inch) long, transmission oil pressure, to transmission control valve

1шт.

34

357043A1

GAUGE

torque converter temperature, use with No. 242 blue Loctite, see below, Replaces: R54146

1шт.

39

A59569

INDICATOR

restriction, air

1шт.

40

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

41

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street, Use with No. 242 blue Loctite

1шт.

42

H357707

FLANGE

BRACKET restriction indicator mounting

1шт.

43

425-104

NUT,1/4"-20, Cl 5

2шт.

44

492-11025

LOCK WASHER,1/4"

2шт.

45

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

1шт.

46

353-411

PLUG,Dome, 1.000" hole, Nylon

If used, not used on models with cold start, see Ref. 3, Figure 4-010 for cold start push-button switch

1шт.

47

353-400

PLUG,Dome, .250" hole, Nylon

If used, Not used on models with cold start, See Ref. 3, Fig. 4-010 for cold start push-button switch

2шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long

1шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube

1шт.

A138483

TUBE

nylon, 2515 mm (99 inch) long

1шт.
