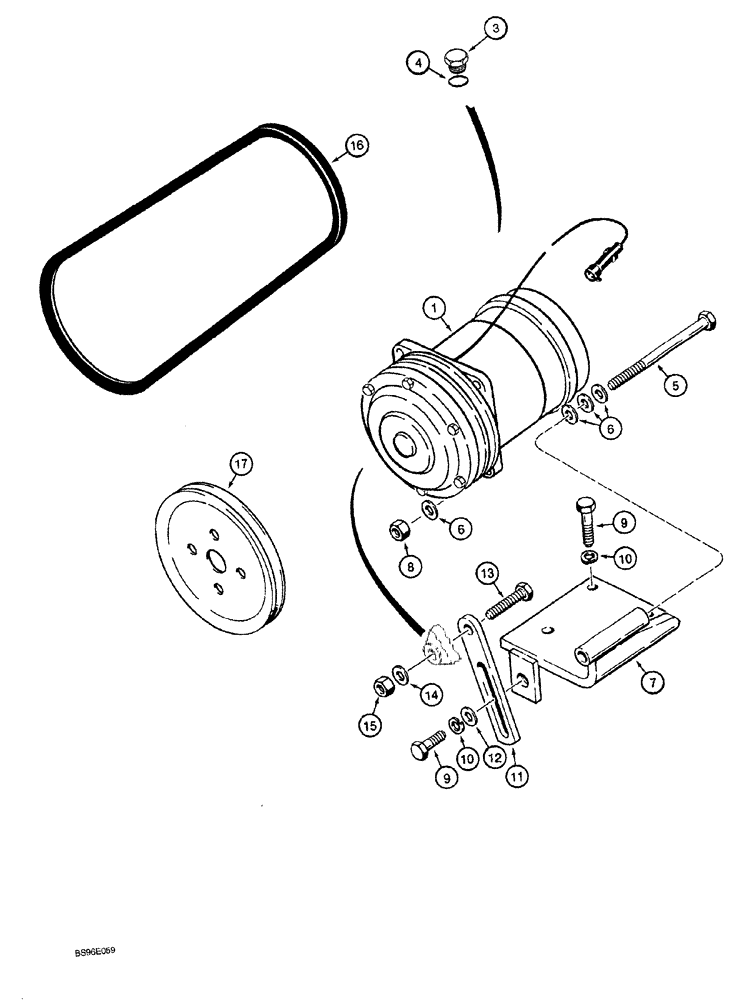

Запчасти Case 1150G (9-070) - AIR CONDITIONING COMPRESSOR MOUNTING (05) - UPPERSTRUCTURE CHASSIS

1990760C1

COMPRESSOR

ASSEMBLY, air conditioning, used with HFC 134A refrigerant, Includes: Ref. 1 - 4

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

1150G (2/95), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COMPRESSOR air conditioning, components not serviced separately, order 1990760C1 compressor assem

1шт.

2

138886A1

CLUTCH

compessor, not shown

1шт.

3

A49667

PLUG

hex

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

7

84711C1

SUPPORT

BRACKET compressor mounting

1шт.

8

825-1410

NUT,M10, Cl 8

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

84716C1

SUPPORT

STRAP adjusting

1шт.

13

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

15

825-1410

NUT,M10, Cl 8

1шт.

16

S82985

V-BELT,36.70" L

Compressor drive

1шт.

17

A189155

PULLEY

compressor drive

1шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
