Запчасти Case 1150G (9-068) - AIR CONDITIONING SYSTEM, COMPRESSOR TO EVAPORATOR CORE (05) - UPPERSTRUCTURE CHASSIS

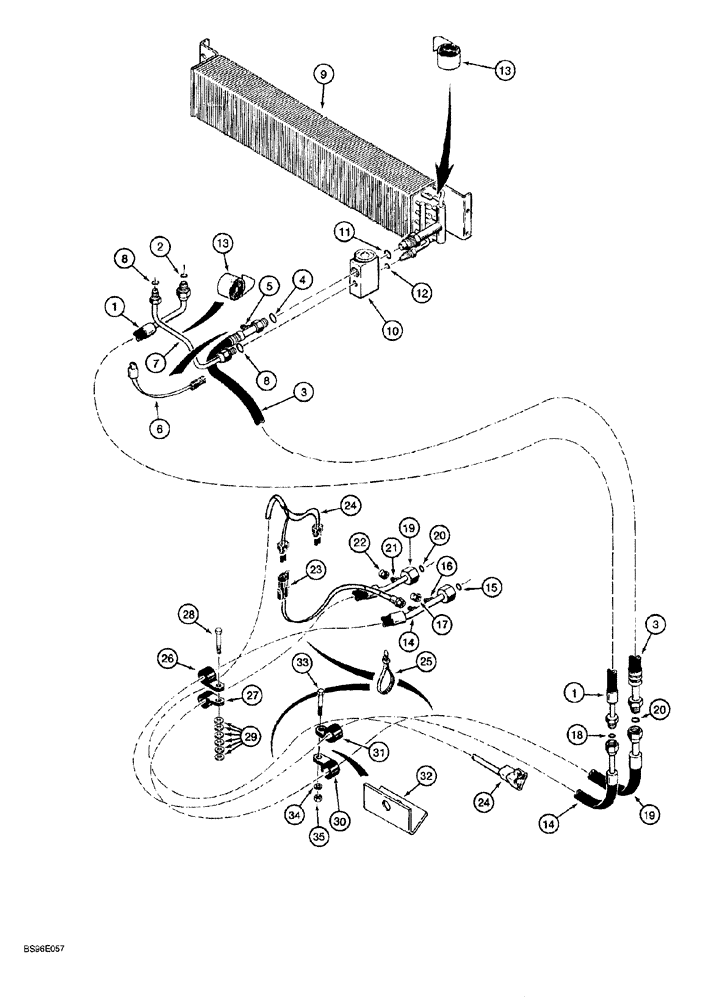

Схема запчастей Case 1150G - (9-068) - AIR CONDITIONING SYSTEM, COMPRESSOR TO EVAPORATOR CORE (05) - UPPERSTRUCTURE CHASSIS
11
9
33
22
23
2
27
1
20
8
30
26
17
19
35
34
7
24
12
13
31
19
3
28
29
1
25
14
18
15
21
16
3
6
20
8
13
24
14
10
5
4
32

Артикул

Название

Примечание

Количество

1

1975773C2

HOSE ASSY.

1840 mm (72-7/16 inch) long, attaches to cab roof condenser tube, Ref. 24 on Figure 9-064, Includes: Ref. 2

1шт.

2

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

3

135521A1

HOSE

1815 mm (71-1/2 inch) long, suction, evaporator core expansion valve upper port to hose on chassis, Includes: Ref. 4, 5

1шт.

4

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

1шт.

5

1250594C1

CORE

VALVE

1шт.

6

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

7

1999419C3

TUBE

attaches to receiver-drier tube, Ref. 22 on Figure 9-064, Includes: Ref. 8

1шт.

8

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

9

1340490C4

EVAPORATOR

CORE ASSY., Replaces: 1340490C3, Includes: Ref. 10 - 12

1шт.

10

1990756C2

VALVE

expansion

1шт.

11

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, Replaces: 238-5015

1шт.

12

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, Replaces: 238-5013

1шт.

13

83822C1

TAPE

610 mm (24 inch) long, see below

1шт.

14

135519A1

HOSE ASSY.

3330 mm (131-1/8 inch) long, discharge, compressor to cab, Includes: Ref. 15 - 18

1шт.

15

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

1шт.

16

1250594C1

CORE

VALVE

1шт.

17

122554A1

CAP

Sealing

1шт.

18

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

19

135520A1

HOSE ASSY.

3267 mm (128-5/8 inch) long, suction, compressor to cab, Includes: Ref. 20 - 22

1шт.

20

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

2шт.

21

1250594C1

CORE

VALVE

1шт.

22

122553A1

CAP

sealing

1шт.

23

232948A1

SWITCH, A/C HIGH PRE

400 psi, Replaces 1999925C1

1шт.

24

R58601

HARNESS

cab, air conditioning, high pressure switch and compressor to main cab harness

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

26

NLS

NO LONGER SERVICED

P-type, 1 inch ID

2шт.

27

D43364

CLAMP

P-type, 1-1/4 inch ID

2шт.

28

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

6шт.

30

R21385

CLAMP

P-type, 15/16 inch ID

1шт.

31

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

P-type, 1-1/8 inch ID

1шт.

32

R52541

SUPPORT

BRACKET hose clamp mounting

1шт.

33

160-103

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

34

892-11010

LOCK WASHER,M10

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

1954475C1

ROLL

TAPE bulk, 63 5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick

1шт.

Выбрано товаров: 36
