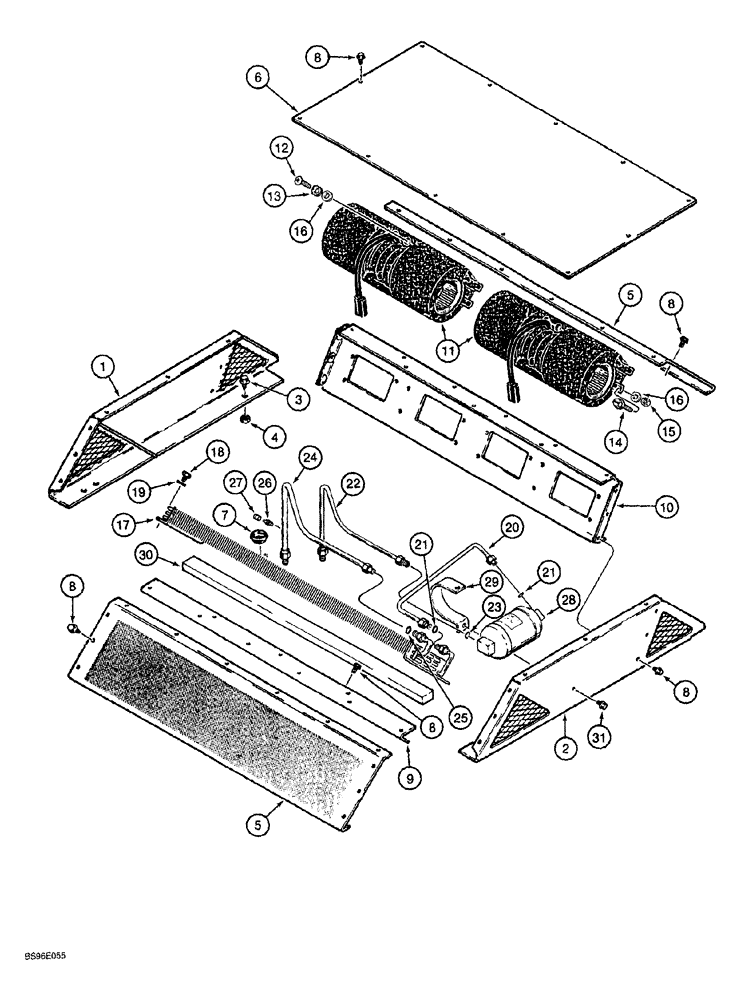

Запчасти Case 1150G (9-064) - AIR CONDITIONING SYSTEM, ABOVE CAB ROOF (05) - UPPERSTRUCTURE CHASSIS

1

R48827

PANEL, SIDE

with screens, left-hand side

1шт.

2

1999418C1

PANEL

with screens, right-hand side

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

4

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

5

R48829

SIEVE

SHIELD perforated, front and rear

2шт.

6

1999421C1

COVER

air conditioning system

1шт.

7

1546466C1

GROMMET

25 mm (1 inch) dia., electrical harness through roof

1шт.

8

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

44шт.

9

R48831

SUPPORT

rear shield mounting

1шт.

10

R49055

SUPPORT

blower mounting

1шт.

11

1999670C1

BLOWER ASSY.

air conditioning condenser, 24 volt, see Figure 4-040

2шт.

12

265-14512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

2шт.

13

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

14

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex head, No. 10 NC x 3/4 inch

8шт.

15

230-42409

NUT,#10-24, GA

hex, self-locking, No. 10 NC

8шт.

16

495-31022

WASHER,#10

10шт.

17

1999513C1

CONDENSER

core, air conditioning

1шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

19

492-11025

LOCK WASHER,1/4"

4шт.

20

1975771C2

TUBE

lower outlet tube on condenser to receiver-drier, Includes: Ref. 21

1шт.

21

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

2шт.

22

1975772C2

TUBE

receiver-drier to roof, attaches to tube at evaporator core expansion valve lower port, Ref. 7 on Figure 9-068, Includes: Ref. 23

1шт.

23

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.

24

135529A1

TUBE,0.5" OD, 266, 198 mm Length

discharge, roof to upper inlet tube on condenser, attaches to Ref. 1 on Figure 9-068, Includes: Ref. 25 - 27

1шт.

25

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

26

1250594C1

CORE

VALVE

1шт.

27

122554A1

CAP

Sealing

1шт.

28

1990758C2

RECEIVER-DRYER

air conditioning

1шт.

29

1999510C1

STRAP

BRACKET receiver-drier

1шт.

30

1999748C1

FOAM

adhesive-backed, 25 (1) x 50 (2) x 1040 mm (41 inch) long, condenser core insulator

2шт.

31

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.
