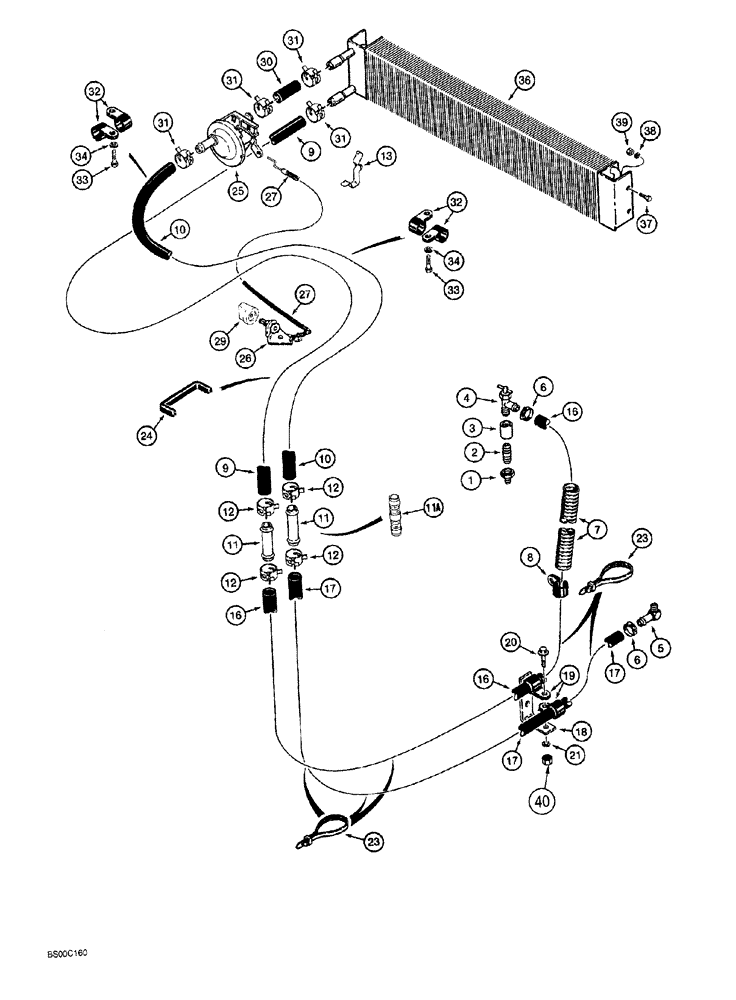

Запчасти Case 1150G (9-062) - CAB HEATING SYSTEM (05) - UPPERSTRUCTURE CHASSIS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female

1шт.

2

221-1165

JUNCTION

NIPPLE straight, 3/8 PT x 2-1/2 inch

1шт.

3

221-1337

COUPLING,Pipe, 3/8" NPT

pipe, 3/8 inch

1шт.

4

301803R1

SHUT-OFF VALVE

heater supply hose

1шт.

5

R50454

FITTING

ELBOW special, 90°

1шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

Adjustable

2шт.

7

S121023

CONDUIT

400 mm (15-3/4 inch) long, inlet hose

1шт.

8

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Inlet hose, Uses existing bolt on engine oil cooler

1шт.

9

R55243

HEATER HOSE,15.50 mm ID x 2300.00 mm

Cut from 97252CX bulk hose, Inlet supply to heater core, See below

1шт.

10

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

Cut from 97252CX bulk hose, Outlet, Return from flow control valve, See below

1шт.

11

S104739

TUBE,0.625" OD x 3" L

hose splice, no longer available, order 130I342C1

2шт.

11a

1301342C1

FITTING

ADAPTER straight, special, hose splice

2шт.

12

1954736C1

HOSE CLAMP,#24

Adjustable

4шт.

13

1954626C1

SPRING CLIP

CLIP retaining, heater cable

1шт.

16

R55245

HEATER HOSE,15.50 mm ID x 3700.00 mm

Cut from 97252CX bulk hose, Inlet, Heater supply from engine, See below

1шт.

17

R55244

HEATER HOSE,15.50 mm ID x 4500.00 mm

Cut from 97252CX bulk hose, Outlet, Heater return to engine, See below

1шт.

18

R51414

SUPPORT

BRACKET heater hoses, use existing mounting hardware

1шт.

19

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type

2шт.

20

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

24

D33500

LINING

TRIM edge, 178 mm (7 inch) long, cut from F42827, see below, hose protection on cab frame

1шт.

25

1331087C1

HEATER VALVE

control, flow, heater

1шт.

1999666C1

CONTROL,862.4mm L

heater, with cable, Includes: Ref. 26, 27

1шт.

26

NSS

NOT SOLD SEPARAT

CONTROL heater, order 199966C1 control assembly for service

1шт.

27

NSS

NOT SOLD SEPARAT

CABLE heater control, order 1999666C1 control assembly for service

1шт.

29

1994720C1

KNOB

push on, heater control

1шт.

30

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Cut from 97252CX bulk hose, Flow control valve to heater core, See below

1шт.

31

1954736C1

HOSE CLAMP,#24

Adjustable

4шт.

32

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Heater supply and return hoses, Attach to tapped block in cab

4шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

36

F45204

HEAT-EXCHANGER

CORE

1шт.

37

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

38

492-11025

LOCK WASHER,1/4"

4шт.

39

425-104

NUT,1/4"-20, Cl 5

4шт.

40

425-106

NUT,3/8"-16, Cl 5

1шт.

97252CX

HOSE

bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long

1шт.
