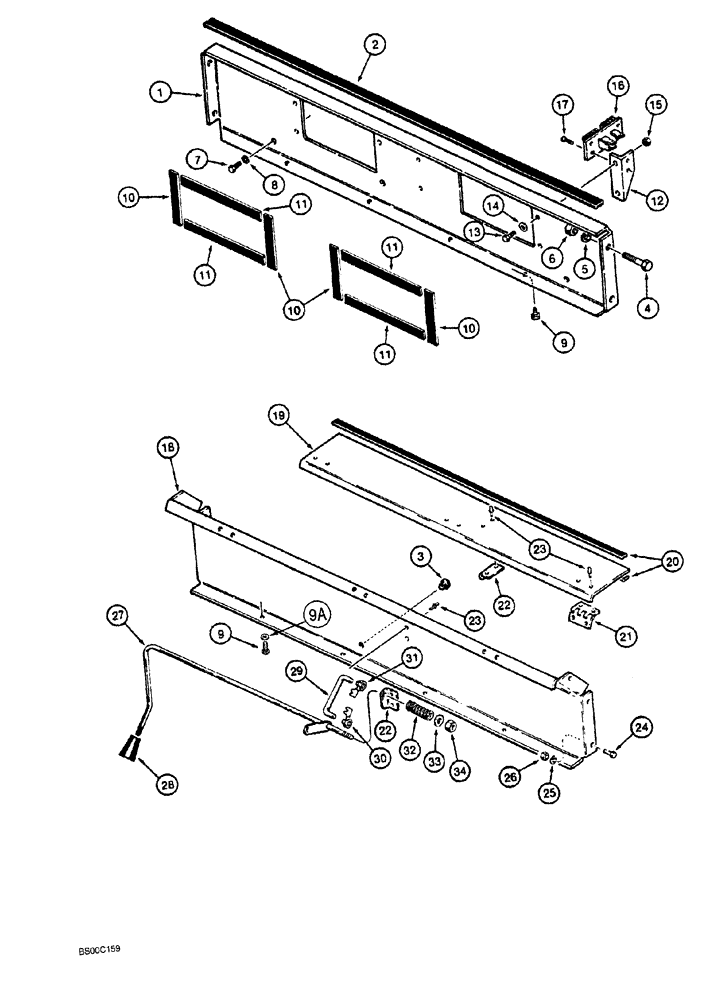

Запчасти Case 1150G (9-060) - BLOWER HOUSING AND AIR FLOW CONTROL, INSIDE CAB ROOF (05) - UPPERSTRUCTURE CHASSIS

1

1975819C1

PANEL

blower mounting

1шт.

2

R44282

SEAL

800 mm (31-1/2 inch) long, top

1шт.

3

1546464C1

GROMMET

rear blower panel

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

492-11031

LOCK WASHER,5/16"

4шт.

6

425-105

NUT,5/16"-18, G5

4шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

8

492-11025

LOCK WASHER,1/4"

2шт.

9

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

self-tapping, oval Phillips, No. 10-16 x 3/4 inch, Replaces: F64519

8шт.

9a

F64315

WASHER

special

8шт.

10

F64818

SEALING STRIP

STRIP foam, adhesive-backed, 96 mm (3-13/16 inch) long, cut from F64119X bulk strip, see below

4шт.

11

F64817

SEALING STRIP

STRIP foam, adhesive-backed, 165 mm (6-1/2 inch) long cut from F64119X bulk strip, see below

4шт.

12

R52799

SUPPORT

BRACKET resistor mounting

1шт.

13

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex head, No. 10 NC x 3/4 inch

2шт.

14

495-31022

WASHER,#10

Replaces 195-513

2шт.

15

230-42409

NUT,#10-24, GA

hex, self-locking, No 10 NC

2шт.

16

F44903

RESISTOR

blower speed, 24 volt

1шт.

17

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

2шт.

18

R51716

PANEL

blower, rear

1шт.

19

R44793

PANEL

air flow control

1шт.

20

REF

INSTRUCTION

SEAL foam, airflow control panel, 600 mm (23-5/8 inch) long, cut from A42905X bulk seal, see below

2шт.

21

F64065

HINGE

panel

3шт.

22

R44794

SUPPORT

BRACKET panel, air flow control

2шт.

23

151-546

RIVET,Pop, 1/8" x 5/16"

break mandrel, 1/8 x 5/16 inch

16шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

25

492-11025

LOCK WASHER,1/4"

6шт.

26

425-104

NUT,1/4"-20, Cl 5

6шт.

27

R51717

LEVER

ROD air flow control

1шт.

28

F64341

KNOB

adjustment lever

1шт.

29

R44798

THREADED ROD

air flow control

1шт.

30

F43349

CLIP

, Serial Range: CLIP-rod

1шт.

31

F43350

CLIP

, Serial Range: CLIP-bracket

1шт.

32

F62245

SPRING

adjustment lever

1шт.

33

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

34

231-1444

NUT,1/4"-20, GB

1шт.

F64119X

GASKET

STRIP foam, bulk, 1 5 (1/16) x 13 (1/2) x 30480 mm (1200 inch), adhesive-backed

1шт.

A42905X

FOAM

SEAL bulk, 3 (1/8) x 13 (1/2) x 9144 mm x (360 inch) long

1шт.
