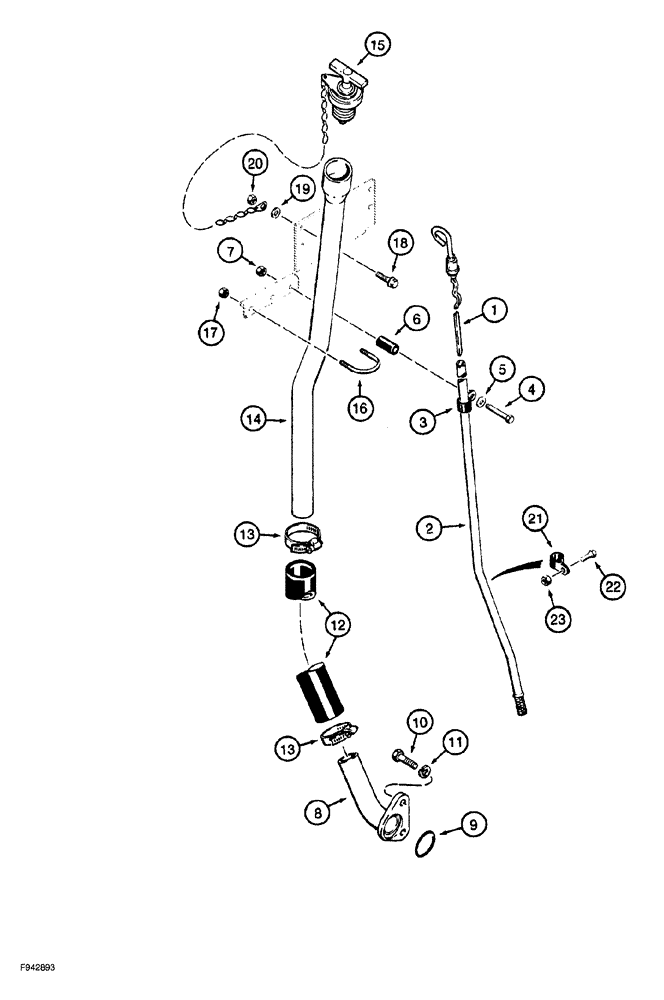

Запчасти Case 1150G (2-004) - ENGINE DIPSTICK AND FILLER TUBE, PRIOR TO JJG0218023 AND JJG0218024 - JJG0218478 (01) - ENGINE

1

R47937

DIPSTICK

engine oil

1шт.

2

R47910

TUBE,0.375" OD

TUBE dipstick

1шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type, Dipstick tube retaining

1шт.

4

424-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 2

hex, 5/16 NC x 2-1/4 inch, grade 2

1шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

6

R53307

HOSE

SLEEVE rubber, bolt mounting

1шт.

7

231-1445

NUT,5/16"-18, GB

1шт.

8

R53750

TUBE,24 mm L

TUBE engine oil fill, lower

1шт.

9

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID, oil filler tube

1шт.

10

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Full threads

2шт.

11

892-11012

LOCK WASHER,M12

2шт.

12

R53715

HOSE,38.10 mm ID x 170.00 mm, SAE 20R1 Class B

Engine Oil Fill

1шт.

13

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj., 1-1/4 - 2-1/8 inch dia., hose

2шт.

14

R52750

TUBE,1.5" OD

TUBE engine oil fill, upper

1шт.

15

L115504

CAP

filler tube, includes chain

1шт.

16

L73167

U-BOLT

upper engine oil fill tube

1шт.

17

231-1444

NUT,1/4"-20, GB

2шт.

18

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

20

230-4215

NUT,5/16"-18, GA

1шт.

21

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Dipstick tube, Attach to bracket on injection pump

1шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

23

231-4116

NUT,3/8"-16, GB

hex, self locking, 3/8 inch NC

1шт.
