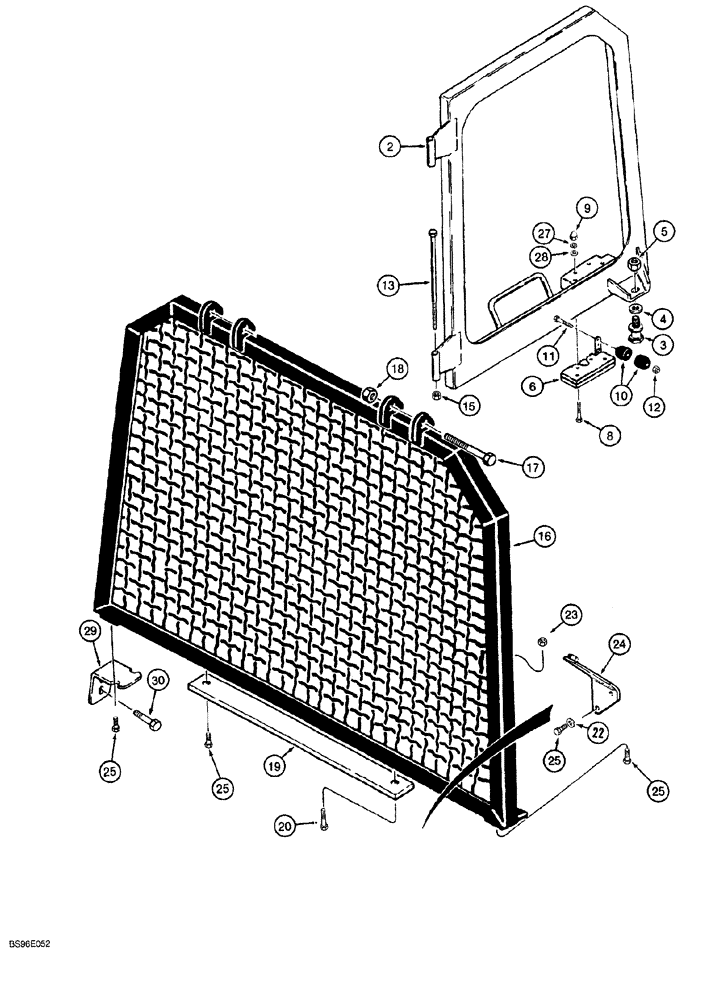

Запчасти Case 1150G (9-052) - ROPS CAB DOOR WINDOW AND REAR SCREEN (05) - UPPERSTRUCTURE CHASSIS

1

189648A1

FRAME

door window, left-hand, not shown

1шт.

2

189649A1

FRAME

door window, right-hand

1шт.

3

R51754

STRIKER

STRIKER latch, on window frame, outer

2шт.

4

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

2шт.

5

131-595

NUT,7/16"-14

hex, self-locking, 7/16 inch NC

2шт.

6

R55002

LATCH

right-hand

1шт.

7

R55003

LATCH ASSY.

left-hand, not shown

1шт.

9

129-884

CROWN NUT,Crown, 1/4"-20

dome, 1/4 inch NC

8шт.

10

L35871

FENDER

BUMPER rubber, latch release knob

4шт.

11

470-11016

SCREW,Pan HD, #10 - 24 x 1"

machine, pan head slotted, No. 10 NC x 1 inch

2шт.

12

225-14110

NUT,#10-24

2шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

13

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16

177173A1

SCREEN

rear

1шт.

17

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

hex, 3/8 NC x 3-3/4 inch

2шт.

18

231-1446

NUT,3/8" - 16, Gr 5

2шт.

19

183914A1

BAR

screen mounting

1шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

23

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self-locking, 3/8 inch NC

1шт.

24

187061A1

ANGLE

BRACKET rear screen retaining, for open screen

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

27

492-11025

LOCK WASHER,1/4"

8шт.

28

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

8шт.

29

187060A1

ANGLE

screen mount rear

2шт.

30

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

If used

4шт.
