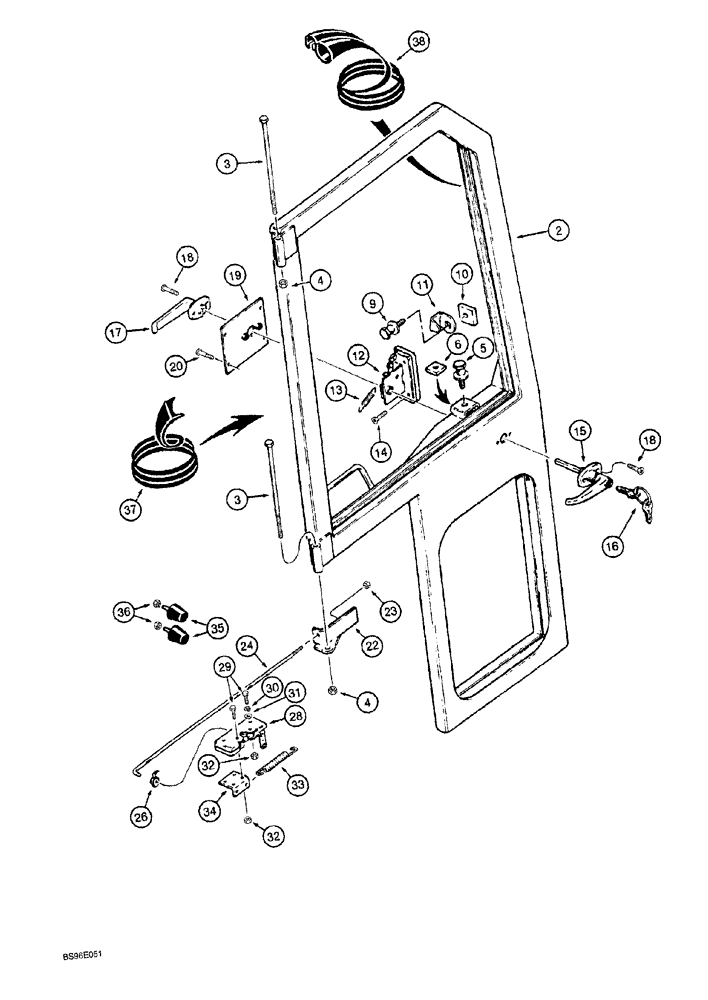

Запчасти Case 1150G (9-050) - ROPS CAB DOORS (05) - UPPERSTRUCTURE CHASSIS

1

189646A1

DOOR

left-hand, not shown

1шт.

2

189647A1

DOOR

right-hand

1шт.

3

424-6160

BOLT,Hex, 3/8" - 16 x 10", Gr 2

4шт.

4

231-1446

NUT,3/8" - 16, Gr 5

4шт.

5

R51754

STRIKER

STRIKER latch, on doorframe

2шт.

6

1340380C1

LARGE PLATE

PLATE, LARGE square, tapped, window latch striker retaining

2шт.

9

R51754

STRIKER

STRIKER latch, on cab frame

2шт.

10

1340381C1

LARGE PLATE

PLATE, LARGE square, tapped, door striker retaining

2шт.

11

R51756

PROTECTOR

GUARD door striker

2шт.

R55000

LATCH ASSY.

door, right-hand, rotary, Includes: Ref. 12, 13

1шт.

R55001

LATCH ASSY.

door, left-hand, rotary, not shown, Includes: Ref. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

LATCH door

1шт.

29

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.

13

A180163

SPRING

extension, right-hand and left-hand latches

1шт.

14

143-101

SCREW,Cross Rec Flat Hd, Csk, 1/4" - 20 x 1", W/ Nylon Insert

8шт.

15

1343909C1

HANDLE

door, includes keys, outer, Includes: Ref. 16

2шт.

16

D88772

KEY

door handle

2шт.

17

D88773

HANDLE

door, inner

2шт.

18

442-11010

SCREW,Cross Oval Hd, #10-24 x 5/8"

machine, oval Phillips, No. 10 NC x 5/8 inch

8шт.

19

N8706

LARGE PLATE

PLATE, LARGE COVER inner door latch

2шт.

20

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

self-tapping, pan head slotted, No. 10 NC x 3/8 inch

8шт.

21

R53915

LEVER

door release, left-hand, not shown

1шт.

22

R53916

LEVER

door release, right-hand

1шт.

23

231-1444

NUT,1/4"-20, GB

2шт.

24

R53920

STEM

ROD door release

2шт.

25

F43349

CLIP

left-hand, not shown

1шт.

26

F43350

CLIP

right-hand

1шт.

27

R55003

LATCH ASSY.

left-hand, not shown

1шт.

28

R55002

LATCH

right-hand

1шт.

30

492-11025

LOCK WASHER,1/4"

8шт.

31

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

8шт.

32

231-1444

NUT,1/4"-20, GB

8шт.

33

L35748

SPRING

door latch release

2шт.

34

R54347

SUPPORT

BRACKET spring retaining

2шт.

35

N7673

BUMPER

BUMPER

4шт.

36

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

37

R51710

SEAL

SEAL, 4300 mm (169-5/16 inch) long, cut from N6453 bulk seal, see below

2шт.

38

R51711

SEAL

SEAL, 3000 mm (118-1/8 inch) long, cut from S118469X bulk seal, see below, window frame, attaches to door frame

2шт.

N6453

SEAL,138 Inches Long

bulk, rubber, 7417 mm (292 inch) long

1шт.

S118469X

SEAL

bulk, 29.5 x (1-5/32) x 18 (11/16) x 7620 mm (300 inch) long

1шт.

B504266

ADHESIVE

5 fluid ounces, rubber, Scotch Grip No. 1300, use to attach rubber, Serial Range: seals-metal

1шт.
