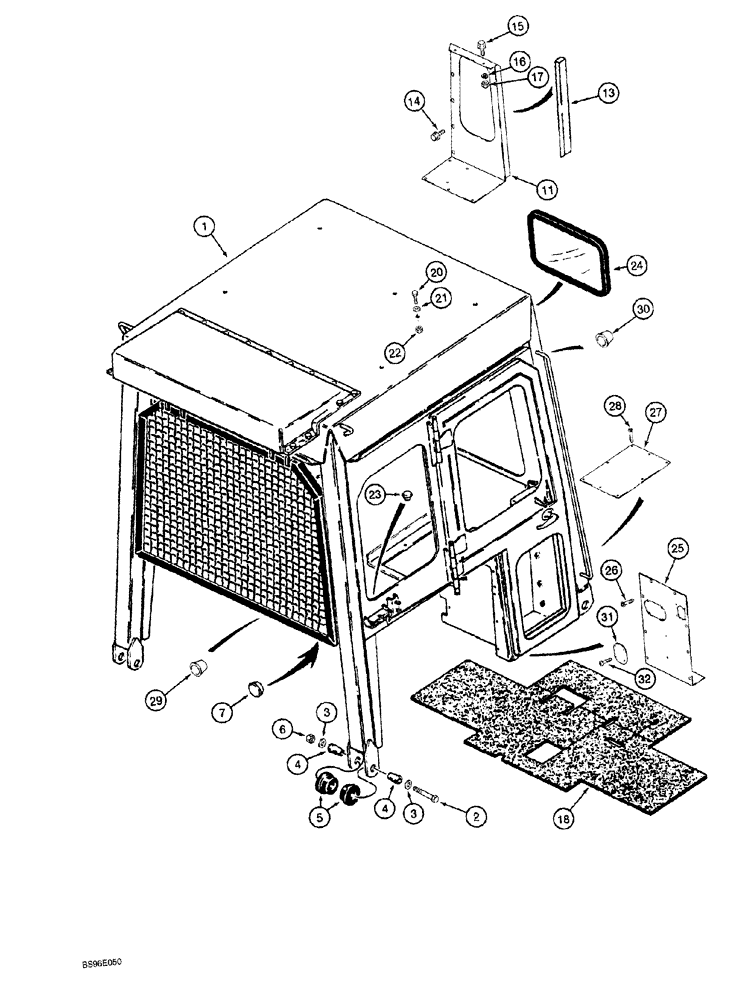

Запчасти Case 1150G (9-048) - ROPS CAB, MOUNTING, FRONT CLOSURE PANELS AND FLOORMAT (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

CAB ROPS, machinery item, order from Machinery Price List

1шт.

2

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4 NC x 6-1/2 inch

4шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, special

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

mounting

8шт.

5

F44214

MOUNTING PARTS

INSULATOR rubber

8шт.

6

232-41112

NUT,3/4"-10, GC

4шт.

7

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, rear cab frame below screen

2шт.

11

178807A1

PANEL

front closure, left-hand

1шт.

12

178808A1

PANEL

front closure, right-hand, not shown

1шт.

13

178806A1

SEAL

foam, 680 mm (26-13/16 inch) long

2шт.

14

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

22шт.

15

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

17

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

18

191358A1

MAT

FLOOR operators compartment, ROPS

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

21

F42778

WASHER

special

6шт.

22

231-1445

NUT,5/16"-18, GB

6шт.

23

353-413

PLUG,Dome, 1.187" hole, Nylon

button, 1-3/16 inch, inner side of hydraulic reservoir, access to transmission fluid recovery bottle mounting bolts

2шт.

24

A177462

MIRROR

rearview, includes mounting hardware, interior

1шт.

25

178803A1

COVER

equipment controls

1шт.

26

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

BOLT hex socket button head, 5/16 NC x 3/4 inch

10шт.

27

181617A1

LARGE PLATE

PLATE, LARGE COVER equipment control valve

1шт.

28

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT hex socket button head, 5/16 NC x 1/2 inch

8шт.

29

353-2

PLUG,Cap, .240" OD

tapered, 1/4 inch, fuel tank frame

4шт.

30

353-62

PLUG,Cap, .302" OD

tapered, 5/16 inch, cab grab rails and cab frame

16шт.

31

R47916

LARGE PLATE

PLATE, LARGE cover, used on models without auxiliary lever

1шт.

32

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

4шт.

B504266

ADHESIVE

5 fluid ounces, rubber, Scotch Grip No. 1300, use to attach foam to metal plates, Replaces: 345-22

1шт.

345-23

ADHESIVE

rubber, Scotch Grip 1300, 1 pint can, for attaching foam pads to metal panels

1шт.
