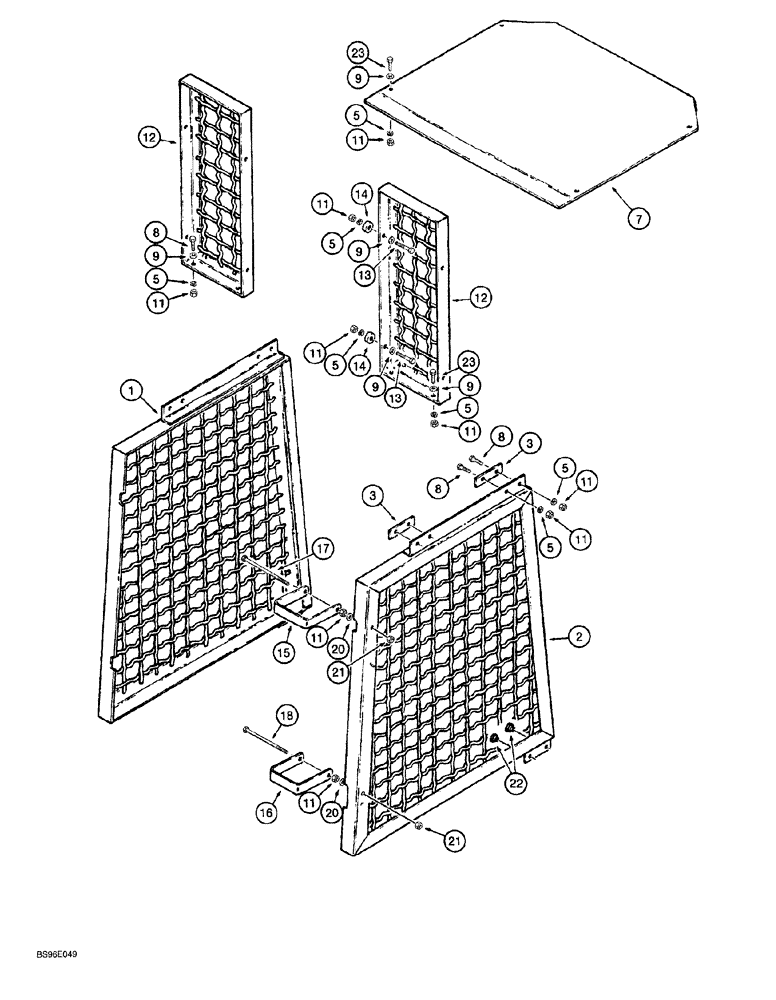

Запчасти Case 1150G (9-046) - ROPS CANOPY BRUSH SCREENS AND EXTENSION (05) - UPPERSTRUCTURE CHASSIS

1

178385A1

SCREEN

left-hand

1шт.

2

178383A1

SCREEN

right-hand

1шт.

3

177383A1

CLAMP

SPACER upper, side screen

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

18шт.

7

177166A1

DEFLECTOR

CANOPY brush guards, ROPS

1шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

9

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

10шт.

11

425-108

NUT,1/2" - 13, Gr 5

22шт.

12

182141A1

SCREEN

front, lower

2шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

14

R39251

SPACER

front screen mounting

4шт.

15

182168A1

CLAMP

side screen, upper rear

2шт.

16

176869A1

CLAMP

side screen, lower rear

2шт.

17

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

hex, 1/2 NC x 7 inch

2шт.

18

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Lower clamp

2шт.

20

T53868

BUSHING

SPACER filter mounting

4шт.

21

131-1308

JAM NUT,Jam, 1/2"-13

4шт.

22

R38089

CUSHION ASSY.

BUMPER rubber, side screen

4шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

6шт.
