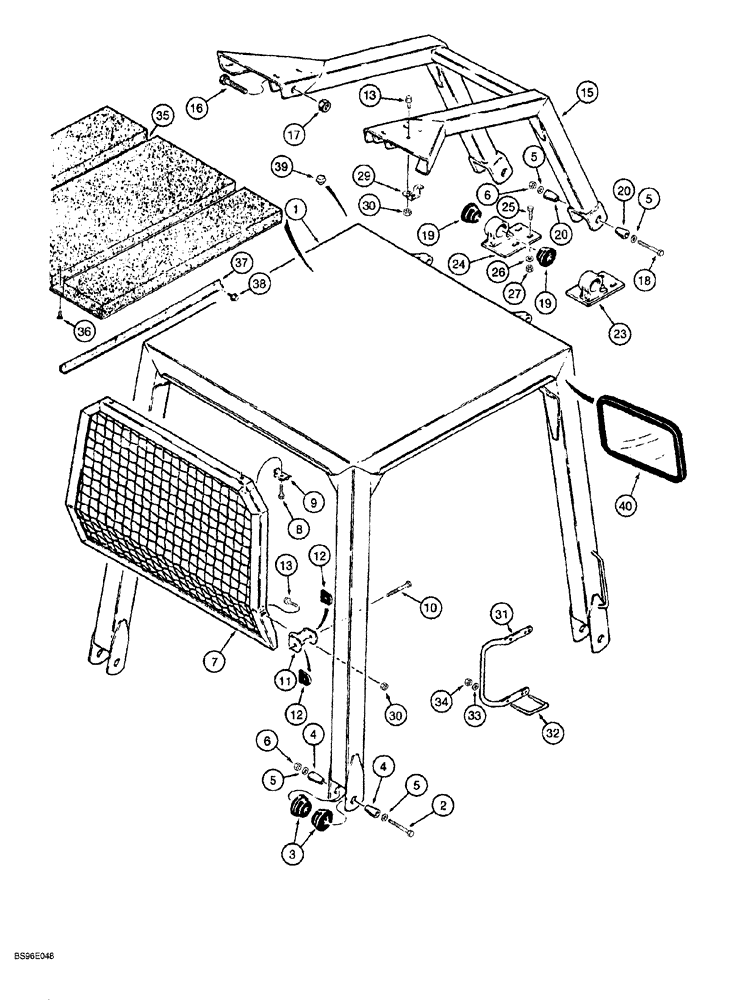

Запчасти Case 1150G (9-044) - ROLL OVER PROTECTIVE STRUCTURE, CANOPY AND BRUSH GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

REF

INSTRUCTION

CANOPY, ROPS machinery item, order from Machinery Price List

1шт.

2

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4 NC x 6-1/2 inch

4шт.

3

F44214

MOUNTING PARTS

INSULATOR rubber

8шт.

4

F44228

BUSHING,19.46mm ID x 38.1mm OD x 60.2mm L

mounting

8шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

flat, hardened, special

12шт.

6

232-41112

NUT,3/4"-10, GC

6шт.

7

177172A1

SCREEN

rear

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

182651A1

LOCK WASHER

special tab locking

2шт.

10

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

BOLT hex, 1/2 NC x 5-3/4 inch

2шт.

11

177168A1

CLAMP

screen mounting, rear

2шт.

12

R40074

CUSHION ASSY.

rubber

4шт.

13

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

6шт.

15

177170A1

GUARD

brush sweep

1шт.

16

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

hex, 1 NC x 4-1/2 inch

2шт.

17

231-14416

LOCK NUT,1"-8, GB

hex, self-locking, 1 inch NC

2шт.

18

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

hex, 3/4 NC x 6 inch

2шт.

19

F44212

MOUNTING PARTS

INSULATOR rubber

4шт.

20

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

insert

4шт.

23

R41176

BASE

brush guard mounting, right-hand

1шт.

24

R41175

BASE

brush guard mounting, left-hand

1шт.

25

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

6шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, hardened

6шт.

27

425-1012

NUT,3/4"-10, G5

6шт.

29

182893A1

BRACKET

lamp mounting

2шт.

30

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

6шт.

31

184858A1

HANDLED SHAFT

grab, rear ROPS canopy frame, 74 inch gauge LGP models

2шт.

32

108571A1

U-BOLT

3/8 inch NC, 74 inch gauge LGP models

4шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

74" gauge LGP models

8шт.

34

425-106

NUT,3/8"-16, Cl 5

74" gauge LGP models

8шт.

35

180716A1

PAD

HEADLINER, ROPS canopy, vinyl-covered, attach with B504266 adhesive, see below

1шт.

36

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

black, plastic, 1/4 hole size x 7/8 inch head dia.

8шт.

37

185553A1

ANGLE

BRACKET headliner retaining

2шт.

38

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

8шт.

39

353-409

PLUG,Dome, .812" hole, Nylon

button, used in the brush guard mounting holes on models without brush guard or lift hooks

8шт.

40

L74714

MIRROR

rearview, includes mounting hardware

1шт.

B504266

ADHESIVE

5 fluid ounces, for attaching headliner to canopy, Replaces: 345-22

1шт.
