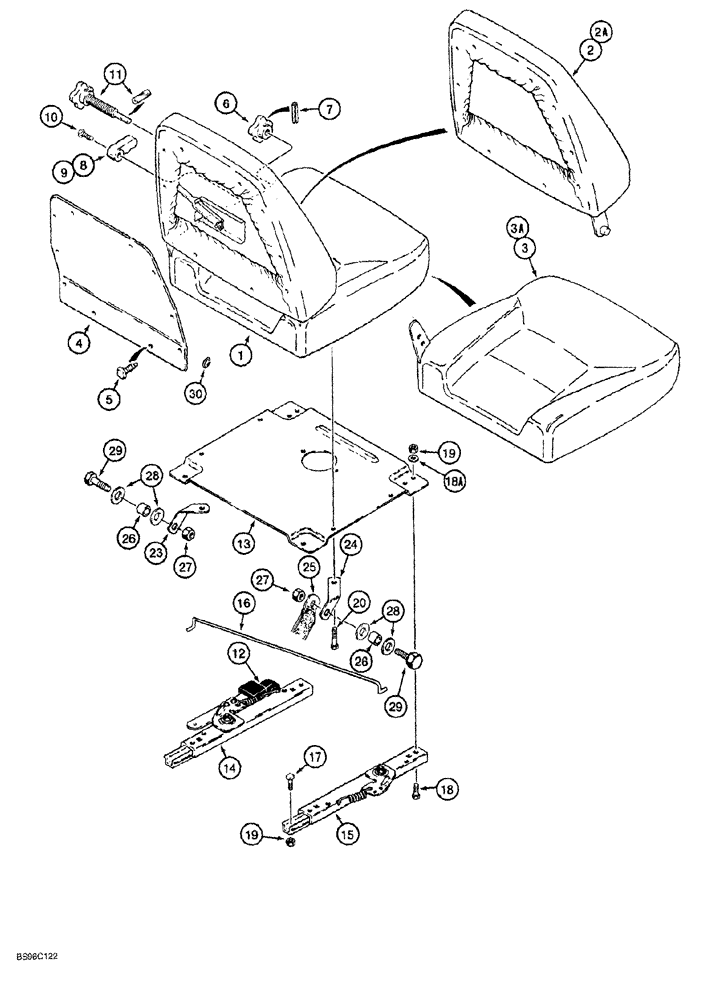

Запчасти Case 1150G (9-038) - SUSPENSION SEAT ASSEMBLY (05) - UPPERSTRUCTURE CHASSIS

175764A1

SEAT ASSY.

suspension, gray vinyl, also includes parts on Figure 9-40, Includes: Ref. 1 - 30

1шт.

1

185361A1

SEAT ASSY.

KIT, complete, without armrests, seat slides or tether, Includes: Ref. 1 - 11

1шт.

2

185362A1

BACKREST

KIT, cushion, complete with frame, without backrest cover, includes knob, Includes: Ref. 2A

1шт.

2a

185364A1

PAD

backrest cushion, with gray vinyl cover, includes hog rings

1шт.

3

185363A1

CUSHION ASSY.

KIT, seat, complete with frame, includes knob, Includes: Ref. 3A

1шт.

3a

185365A2

PAD

seat cushion, with gray vinyl cover, includes hog rings, Replaces: 185365A1

1шт.

3b

141566A1

LARGE PLATE

PLATE, LARGE reinforcement, seat frame to backrest frame, left-hand, if used, not shown

1шт.

1981820C2

PACKAGE, REPAIR

KIT backrest cover and retainers, Includes: Ref. 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

COVER backrest plate

1шт.

5

1999693C1

KIT

CLIP Christmas tree, package of 14

1шт.

1999691C1

PACKAGE,SERVICE

KIT seat knob, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

KNOB seat tilt

1шт.

7

38-31016

PIN,5/32" x 1", Coiled

2шт.

8

NSS

NOT SOLD SEPARAT

KNOB back tilt cover

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE recliner

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW special

1шт.

11

NSS

NOT SOLD SEPARAT

KNOB lumbar

1шт.

12

NSS

NOT SOLD SEPARAT

KNOB fore/aft

1шт.

13

182991A1

LARGE PLATE

PLATE, LARGE adapter

1шт.

1344248C1

SLIDE

KIT, double-locking, Includes: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

SLIDE locking seat, with handle

1шт.

15

NSS

NOT SOLD SEPARAT

SLIDE locking

1шт.

16

NSS

NOT SOLD SEPARAT

WIRE slide latch

1шт.

17

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18a

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

4шт.

19

231-4115

NUT,5/16"-18, GB

8шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

1999806C1

KIT

tether, Includes: Ref. 23 - 29

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET mounting, left-hand

1шт.

24

NSS

NOT SOLD SEPARAT

BRACKET mounting, right-hand

1шт.

25

R57317

SAFETY BELT ,1.80" W x 10.50" L

Strap

2шт.

26

NSS

NOT SOLD SEPARAT

SPACER tether

2шт.

27

231-4117

LOCK NUT,7/16"-14, GB

hex, self-locking, 7/16 inch NC

2шт.

28

495-21063

WASHER,9/16"

flat, 5/8 x 1-15/32 x 7/64 inch

4шт.

29

328-732

BOLT,Hex, 7/16" - 20 x 2", Gr 8

2шт.

30

176091A1

PACKAGE,SERVICE

KIT retaining, hog ring, package of 48 rings for cushions

2шт.
