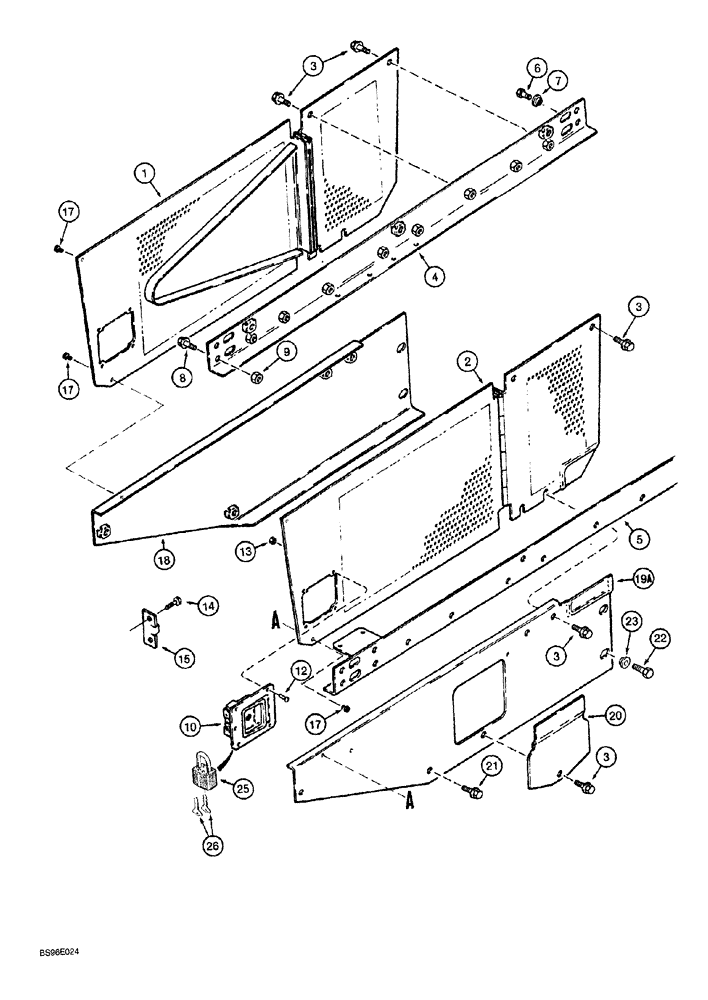

Запчасти Case 1150G (9-034) - SIDE SHIELDS (05) - UPPERSTRUCTURE CHASSIS

1

R55456

SHIELD

left-hand side, hinged

1шт.

2

R55089

GUARD ASSY.

SHIELD, right-hand side, hinged

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

9шт.

4

R53366

SUPPORT

BRACKET mounting, left-hand, side shield to hood, prior to JJG0218023 and JJG0218024 - JJG0218474, no longer available, order 241710A1

1шт.

4

241710A1

HOLDER

BRACKET mounting, left-hand, side shield to hood, JJG0218023 and JJG0218475 and after

1шт.

5

R53365

SUPPORT

BRACKET mounting, right-hand, side shield to hood, prior to JJG0218023 and JJG0218023 - JJG0218474

1шт.

5

241711A1

ANGLE

BRACKET mounting, right-hand, side shield to hood, JJG0218023 and JJG0218475 and after

1шт.

6

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Use with blue Loctite No. 242, Shown below

4шт.

7

R54996

SPACER

bolt

4шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Bracket to upright frame

4шт.

9

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

4шт.

10

R56221

LATCH

LATCH door

2шт.

12

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

13

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

14

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

15

141562A1

HAMMER

STRIKER latch

2шт.

17

A161780

BUMPER

rubber, side shields

4шт.

18

R53891

HOOD

SHIELD side, lower left-hand

1шт.

19

186312A1

SHIELD

side, lower right-hand, without access plate opening, production only, service with Ref. 19A and 20, not shown

1шт.

19a

R53893

HOOD

SHIELD side, lower right-hand

1шт.

20

R50128

LARGE PLATE

PLATE, LARGE access, right-hand side shield, used on R53893 only

1шт.

21

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

22

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Use with blue Loctite No. 242, Shown below

4шт.

23

R54996

SPACER

bolt

4шт.

25

D93753

PADLOCK

includes keys, Replaces: R29554, Includes: Ref. 26

1шт.

26

R29555

KEY

for Master padlock only

2шт.

26

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube, not shown

1шт.
