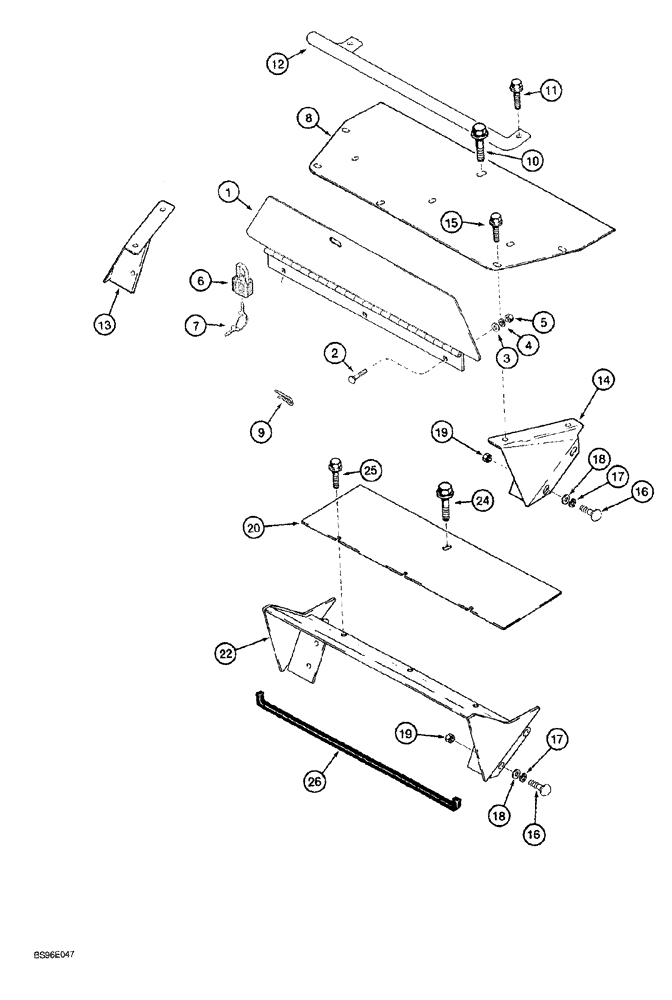

Запчасти Case 1150G (9-032) - INSTRUMENT PANEL COVERS (05) - UPPERSTRUCTURE CHASSIS

1

140710A1

COVER

instrument panel lockup, used on models without a cab

1шт.

2

A42923

CARRIAGE BOLT

carriage, special, 5/16 NC x 27/32 inch, used on models without a cab

3шт.

3

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16"), Used on models without a cab

3шт.

4

492-11031

LOCK WASHER,5/16"

Used on models without a cab

3шт.

5

425-105

NUT,5/16"-18, G5

Used on models without a cab

3шт.

6

D93753

PADLOCK

includes keys, Includes: Ref. 7, used on models without a cab

1шт.

7

R29555

KEY

for Master padlock only, used on models without a cab

2шт.

7

D93751

SET OF 2 KEYS

for Yale padlock only, used on models without a cab

2шт.

8

140704A1

COVER

gauges, used on models without a cab

1шт.

9

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

Used on models without a cab

1шт.

10

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Used on models without a cab

1шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Used on models without a cab

2шт.

12

R58279

RAIL

HAND, bolt on, used on models without a cab

1шт.

13

R58274

BRACKET

instrument panel, left-hand, used on models without a cab

1шт.

14

R58273

BRACKET

instrument panel, right-hand, used on models without a cab

1шт.

15

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT hex flange, 3/8 NC x 3/4 inch, grade 8, Replaces: 160-100, used on models without a cab

5шт.

16

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT carriage, 3/8 NC x 1 inch, grade 2, used on models without a cab

4шт.

17

492-11038

LOCK WASHER,3/8"

Used on models without a cab

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Used on models without a cab

4шт.

19

425-106

NUT,3/8"-16, Cl 5

Used on models without a cab

4шт.

20

178885A1

COVER

instrument panel, access, used on models with a cab

1шт.

22

183474A1

PLATE

COVER instrument panel, used on models with a cab

1шт.

24

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Used on models with a cab

1шт.

25

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT hex flange, 3/8 NC x 3/4 inch, grade 8, Replaces: 160-100, used on models with a cab

7шт.

26

R53235

SEAL

foam, 760 mm (29-15/16 inch) long, instrument panel cover to cab frame, attach with adhesive, used on models with a cab

1шт.

B504266

ADHESIVE

5 fluid ounces, rubber, Scotch Grip No. 1300, use to attach foam to metal plates, used on models with a cab

1шт.

345-23

ADHESIVE

rubber, Scotch Grip 1300, 1 pint can, use to attach foam to metal plates, used on models with a cab

1шт.
