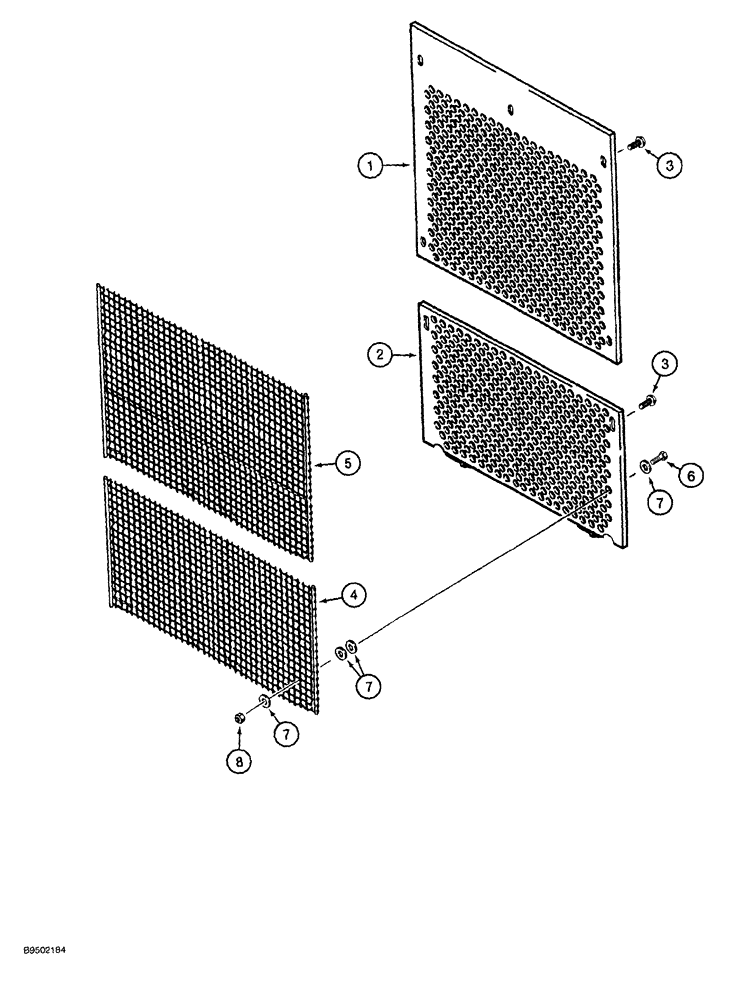

Запчасти Case 1150G (9-028) - GRILLE AND RADIATOR BRUSH SCREENS (05) - UPPERSTRUCTURE CHASSIS

1

140325A1

GRILLE

upper

1шт.

2

175150A1

GRILLE

lower

1шт.

3

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT hex flange, 1/2 NC x 1-1/2 inch, grade 8

6шт.

4

182174A1

SCREEN

radiator brush, lower, 330 mm (13 inch) high

1шт.

5

182171A1

SCREEN

radiator brush, upper, 432 mm (17 inch) high

1шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

16шт.

7

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

flat, special, 3/8 inch

64шт.

8

231-1446

NUT,3/8" - 16, Gr 5

16шт.
