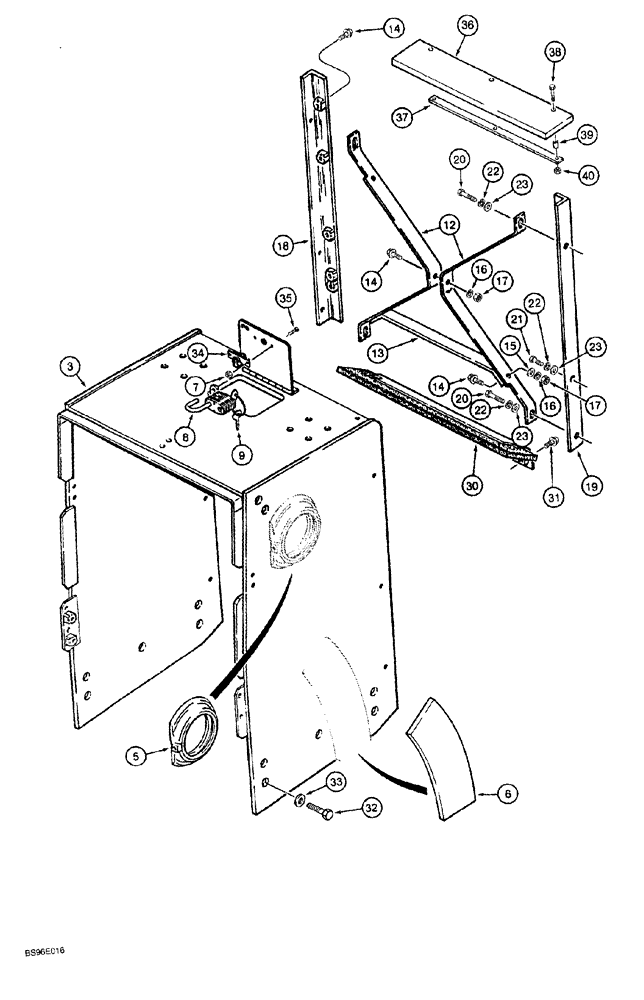

Запчасти Case 1150G (9-026) - RADIATOR SHROUD (05) - UPPERSTRUCTURE CHASSIS

3

197614A1

KIT

radiator shroud, includes decals, see Figure 9-072 for decals, Includes: Ref. 5, 6

1шт.

5

R54811

CYLINDER END CAP

RACE trunnion, weld-on

2шт.

6

R54773

LARGE PLATE

PLATE, LARGE wear, weld-on

2шт.

7

F45165

SPECIAL NUT,#10-24

hex, self-locking, special, No. 10 NC

2шт.

8

D93753

PADLOCK

includes keys, Includes: Ref. 9

1шт.

9

R29555

KEY

for Master padlock only

2шт.

9

D93751

SET OF 2 KEYS

for Yale padlock only

2шт.

12

175229A1

BRACE

shroud support

2шт.

13

175212A1

BRACE

cross piece, lower

1шт.

14

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT hex flange, 1/2 NC x 1-1/2 inch, grade 8

9шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

17

425-108

NUT,1/2" - 13, Gr 5

3шт.

18

175237A1

ANGLE

BRACKET grille mounting, left-hand

1шт.

19

175269A1

ANGLE

BRACKET grille mounting, right-hand

1шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Replaces 413-816

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

6шт.

30

175174A1

PLATE

PANEL lower radiator baffle

1шт.

31

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

32

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

10шт.

33

D30196

WASHER

flat, special, 1 inch, hardened

10шт.

34

L102515

LATCH

fastener

1шт.

35

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

36

R49936

PAD

baffle, 140 (5-1/2) x 25 4 (1) x 736 mm (29 inch)

1шт.

37

R49917

LARGE PLATE

PLATE, LARGE STRIP pad backing, 25 4 (1) x 3.5 (1/8) x 610 mm (24 inch)

1шт.

38

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

39

D34244

SPACER

SPACER, 17.5 mm (11/16 inch) long

3шт.

40

231-1445

NUT,5/16"-18, GB

3шт.
