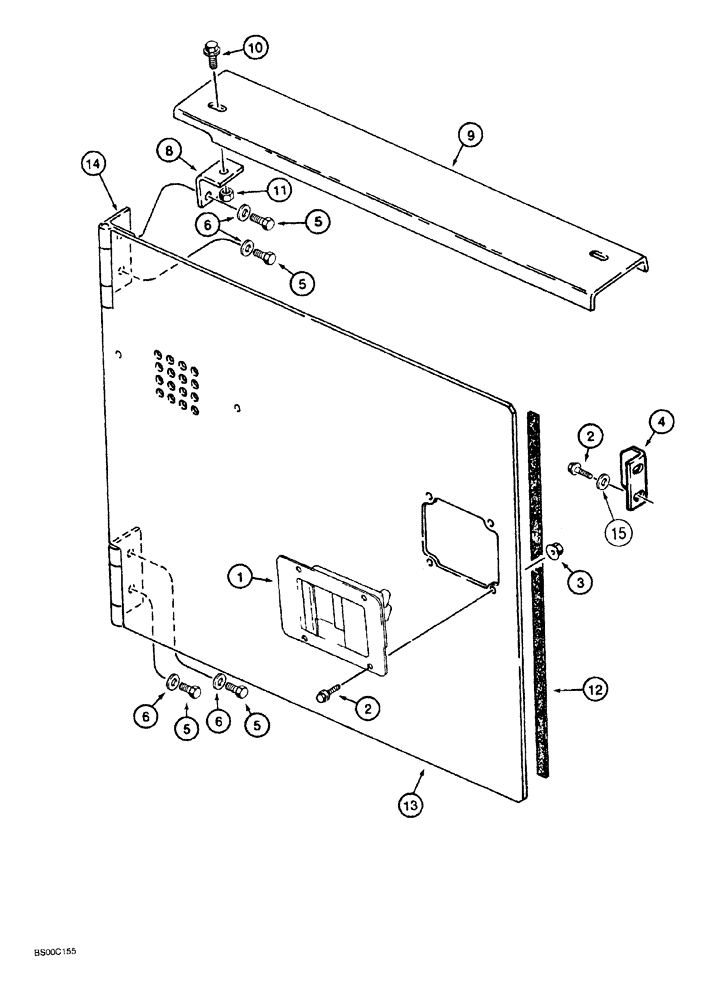

Запчасти Case 1150G (9-022) - REAR ACCESS COVER (05) - UPPERSTRUCTURE CHASSIS

1

R56221

LATCH

LATCH rear access cover

1шт.

2

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

4

R56397

LARGE PLATE

PLATE, LARGE STRIKER latch, rear cover

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

Replaces D41740

6шт.

8

R48725

SUPPORT

BRACKET mounting

2шт.

9

141070A1

COVER

upper

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self-locking, 3/8 inch NC

2шт.

12

R56995

PROTECTION STRIP

PAD bumper

1шт.

13

R55078

COVER

rear, hinged, models without cab

1шт.

13

101194A1

COVER

rear, hinged, models with cab, Includes: Ref. 14

1шт.

14

R50984

HINGE

weld-on, for R55078 or 101194A1 cover

2шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.
