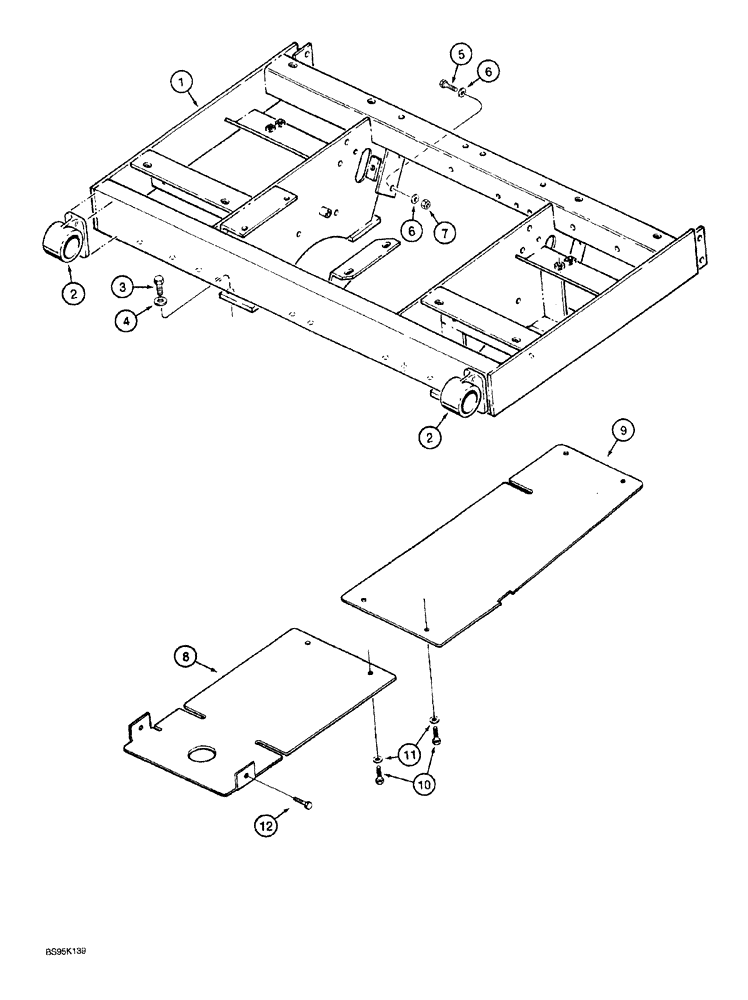

Запчасти Case 1150G (9-020) - SEAT AND RESERVOIRS FRAME AND GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

143915A1

FRAME

seat and reservoirs

1шт.

2

R39921

BRACKET

MOUNT ROPS mounting, welded on

2шт.

3

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, hardened

8шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

12шт.

7

425-1010

NUT,5/8"-11, G5

6шт.

8

144027A1

COVER

GUARD rear, left-hand and right-hand

2шт.

9

143884A1

COVER

GUARD front, left-hand and right-hand

2шт.

10

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

12шт.

11

R24718

WASHER

flat, hardened, special

12шт.

12

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.
