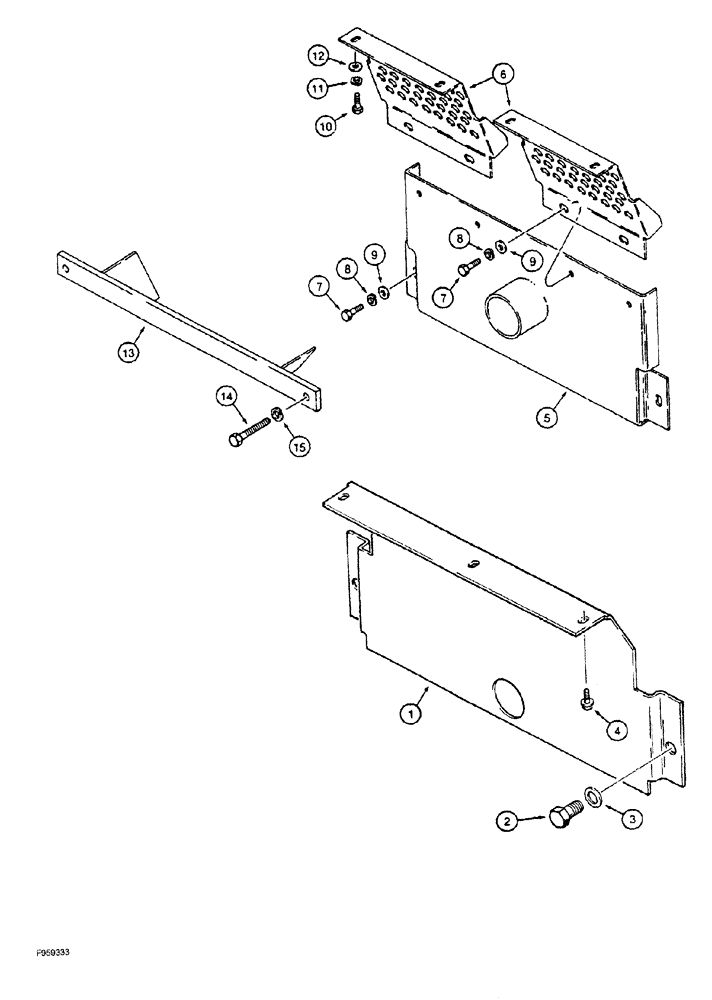

Запчасти Case 1150G (9-018) - REAR TRANSMISSION GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

R46920

GUARD ASSY.

transmission, rear, models without rear-mounted equipment

1шт.

2

13-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5, Full Thd

Models without rear-mounted equipment

2шт.

3

95-11106

WASHER,1" x 2" x .134"

flat, 1-1/16 x 2 x 1/8 inch, models without rear-mounted equipment

2шт.

4

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Models without rear-mounted equipment

3шт.

5

R51367

GUARD ASSY.

rear, lower, ripper models

1шт.

6

R51366

GUARD ASSY.

rear, upper, perforated, ripper models

2шт.

7

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

Ripper models

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

Ripper models

6шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Ripper models

6шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Ripper models

4шт.

11

492-11038

LOCK WASHER,3/8"

Ripper models

4шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16"), Ripper models

4шт.

13

R51363

LARGE PLATE

PLATE, LARGE GUARD transmission, rear, lower, ripper models

1шт.

14

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Ripper models

2шт.

15

492-11062

BEARING WASHER,5/8"

Ripper models

2шт.
