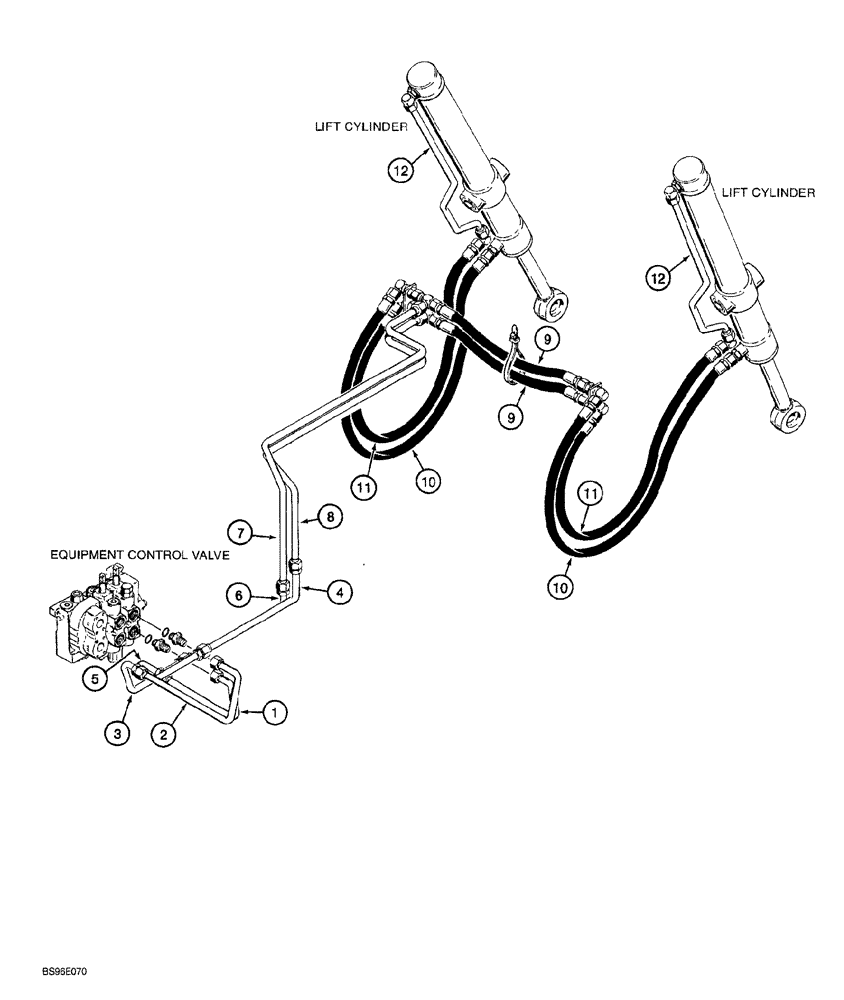

Запчасти Case 1150G (1-016) - PICTORIAL INDEX - DOZER LIFT HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Tube at control valve B port, Page 8-13, 8-13B

1шт.

2

Tube at control valve A port, Page 8-13, 8-13B

1шт.

3

Tube at A port, Page 8-13, 8-13B

1шт.

4

Tube at A port, Page 8-13, 8-13B

1шт.

5

Tube at B port, Page 8-13, 8-13B

1шт.

6

Tube at B port, Page 8-13, 8-13B

1шт.

7

Upper tube from B port of control valve, Page 8-13, 8-13B

1шт.

8

Lower tube from A port of control valve, Page 8-13, 8-13B

1шт.

9

Crossover hose, Page 8-15

1шт.

10

Hose to rod end of lift cylinder, Page 8-15

1шт.

11

Hose to closed end of lift cylinder, Page 8-15

1шт.

12

Tube to closed end of cylinders, Pagr 8-15

1шт.
