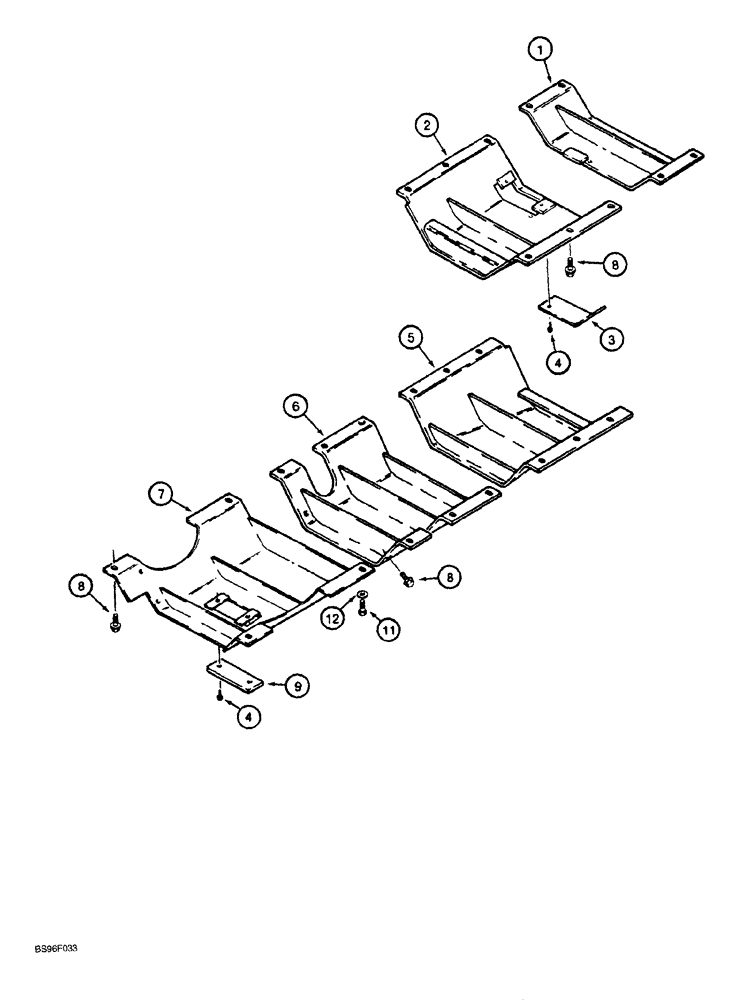

Запчасти Case 1150G (9-016) - UNDERCARRIAGE GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

R48349

GUARD ASSY.

front

1шт.

2

R54943

GUARD ASSY.

engine oil pan

1шт.

3

R48345

COVER

engine oil drain

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

5

R36545

GUARD ASSY.

torque converter

1шт.

6

R52167

GUARD ASSY.

at pivot shaft

1шт.

7

R26356

GUARD ASSY.

transmission, rear

1шт.

8

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT hex flange, 5/8 NC x 2 inch, grade 8

24шт.

9

R48231

COVER

PLATE drain cover, rear transmission guard

1шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch, front mounting holes of transmission guard

2шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

2шт.
