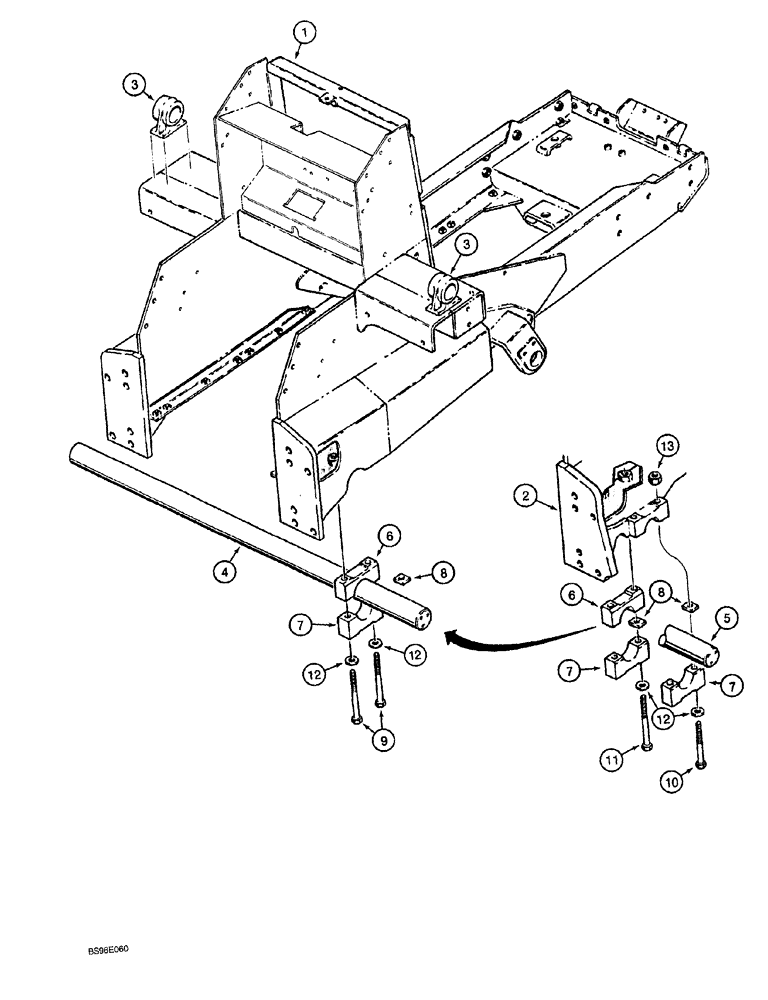

Запчасти Case 1150G (9-014) - MAIN FRAME AND PIVOT SHAFT (05) - UPPERSTRUCTURE CHASSIS

1

182713A1

FRAME

engine and main 1575 mm (62 inch) gauge models, no longer available, order 141456A2, see Figure 9-012

1шт.

2

182714A1

FRAME

engine and main, 1880 mm (74 inch) gauge models, no longer available, order 143571A2, see Figure 9-012

1шт.

3

R39921

BRACKET

MOUNT, ROPS mounting, welded on

2шт.

4

R26860

SHAFT

pivot, 1575 mm (62 inch) gauge dozer and drawbar models

1шт.

5

R31363

SHAFT

pivot, 1880 mm (74 inch) gauge LGP and wide track dozer models

1шт.

6

R49332

CLAMP

pivot shaft, upper, 4 used on 1575 mm (62 inch) gauge models, 2 used on 1880 mm (74 inch) gauge models, outer clamps

2-4шт.

7

R49332

CLAMP

pivot shaft, lower, all models

4шт.

8

R26802

SPACER

clamp

4шт.

9

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

BOLT hex, 1 NC x 8-1/2 inch, 1575 mm (62 inch) gauge models

8шт.

10

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

BOLT hex, 1 NC x 8 inch, 1880 mm (74 inch) gauge models, outer clamps

4шт.

11

413-16136

BOLT,Hex, 1" - 8 x 8-1/2", Gr 5

BOLT hex, 1 NC x 8-1/2 inch, 1880 mm (74 inch) gauge models, inner clamps

4шт.

12

D30196

WASHER

flat, special, 1 inch, all models

8шт.

13

425-1016

NUT,1"-8, G5

Hex, Used on all 1880 mm (74 inch) gauge models, outer clamps

4шт.
