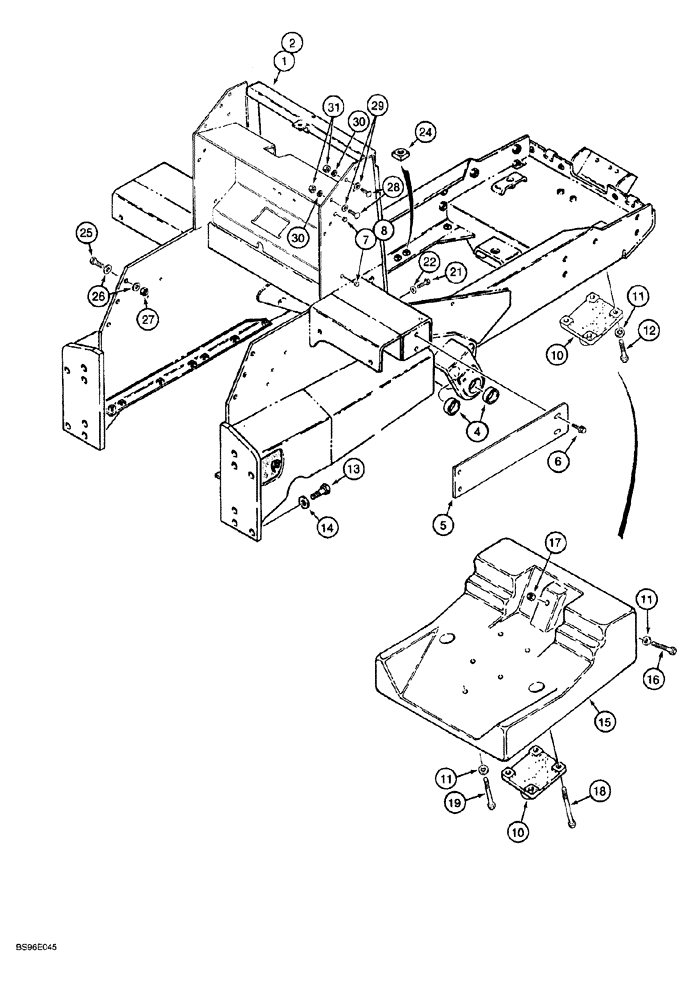

Запчасти Case 1150G (9-012) - MAIN FRAME, PULL HOOK AND COUNTERWEIGHT (05) - UPPERSTRUCTURE CHASSIS

1

141456A2

FRAME

engine and main, 1575 mm (62 inch) gauge models

1шт.

L70379

BUSHING,63.75mm ID x 76.2mm OD x 31.75mm L

frame

4шт.

2

143571A2

FRAME

engine and main, 1880 mm (74 inch) gauge models, Includes: Ref. 4

1шт.

4

L70379

BUSHING,63.75mm ID x 76.2mm OD x 31.75mm L

frame

4шт.

5

141740A1

PLATE

side frame, used on models with cab only

2шт.

6

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT hex flange, 1/2 NC x 1-1/2 inch, grade 8, used with Ref. 5 on models with cab only

8шт.

7

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, used on models with cab only

4шт.

8

353-402

PLUG,Dome, .375" hole, Nylon

Used on models with cab only

1шт.

10

71671

PLATE ASSY.

HOOK pull, if used

1шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

4-7шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used on models with Ref. 10 pull hook only

4шт.

13

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

Final drive housing to main frame

12шт.

14

D30196

WASHER

flat, special, 1 inch, hardened

12шт.

15

223497A1

WEIGHT

COUNTER, front

1шт.

16

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

17

425-1012

NUT,3/4"-10, G5

Replaces 25-1012

1шт.

18

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4 NC x 4 inch, used on models with counterweight and pull hook

4шт.

19

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Used on models with counterweight but without pull hook

4шт.

21

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

22

R24718

WASHER

flat, hardened, special

4шт.

24

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

heavy square, 5/8 inch NC, heavy, cage, weld-on, for mounting bottom guards

24шт.

25

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

26

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 21/32 x 1-5/16 x 5/32 inch, hardened

12шт.

27

25-1010

NUT,5/8"-11, G5

6шт.

28

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT carriage, 3/8 NC x 1 inch, grade 2

4шт.

Used to plug instrument panel bracket mounting holes on models with cabs.

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

Used to plug instrument panel bracket mounting holes on models with cabs.

1шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

Used to plug instrument panel bracket mounting holes on models with cabs.

1шт.

31

425-106

NUT,3/8"-16, Cl 5

4шт.

Used to plug instrument panel bracket mounting holes on models with cabs.

1шт.
