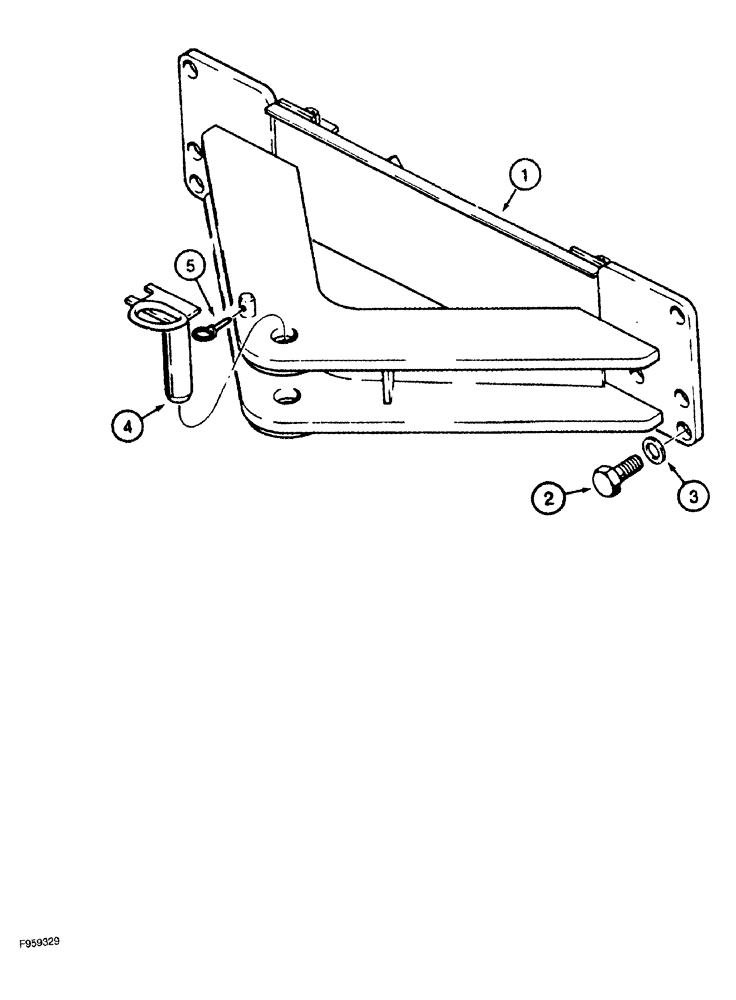

Запчасти Case 1150G (9-010) - DRAWBAR, MODELS WITHOUT REAR-MOUNTED EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

R43756

DRAWBAR

used without rear mounted equipment

1шт.

2

413-1636

BOLT,Hex, 1" - 8 x 2-1/4", Gr 5

BOLT hex, 1 NC x 2-1/4 inch

8шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, 1-1/16 x 1-7/8 x 9/64 inch, hardened

8шт.

4

R26750

PIN

drawbar

1шт.

5

A30338

PIN

lock

1шт.
